GEO 305 Drill rig

Tous les produits

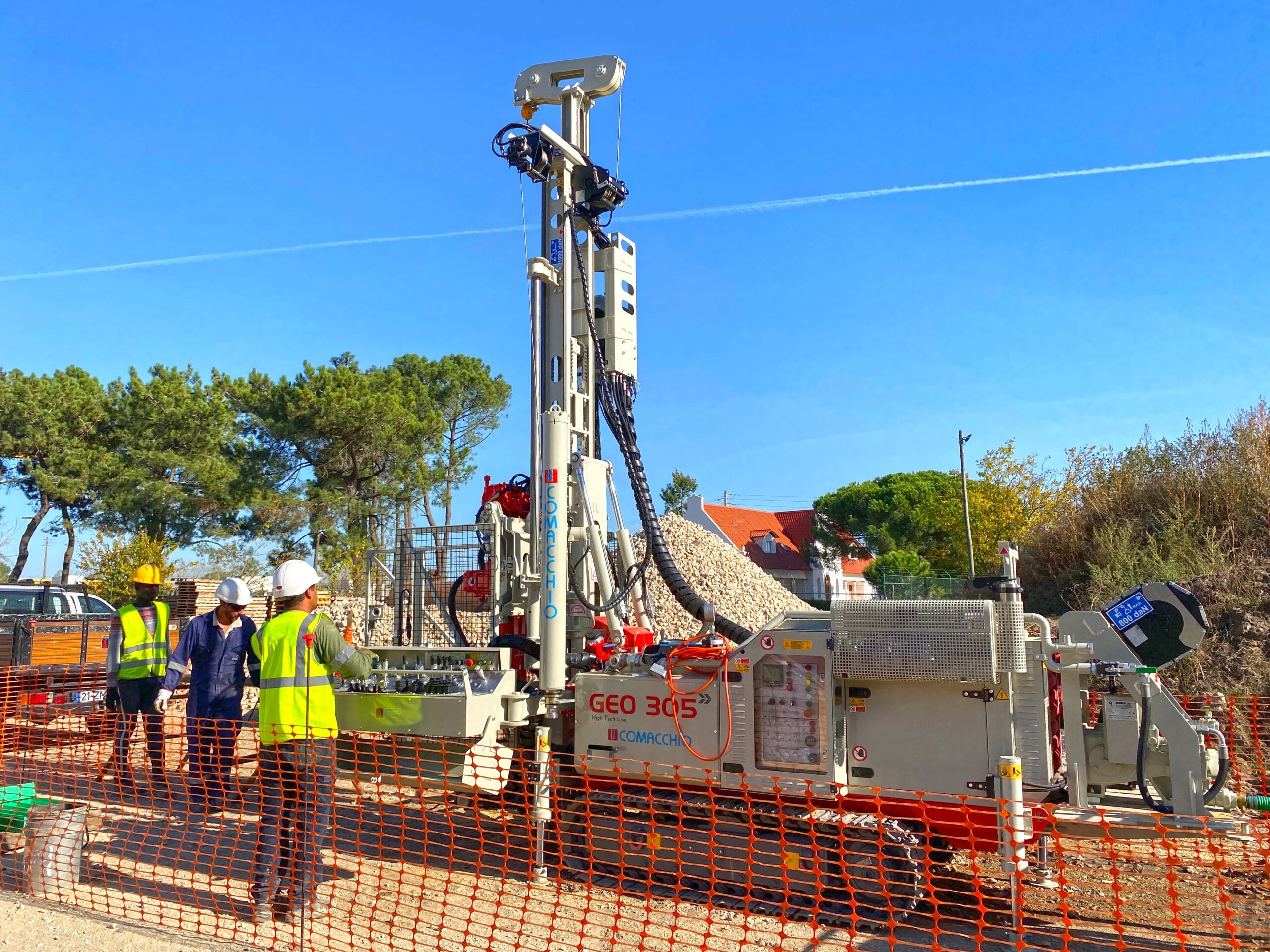

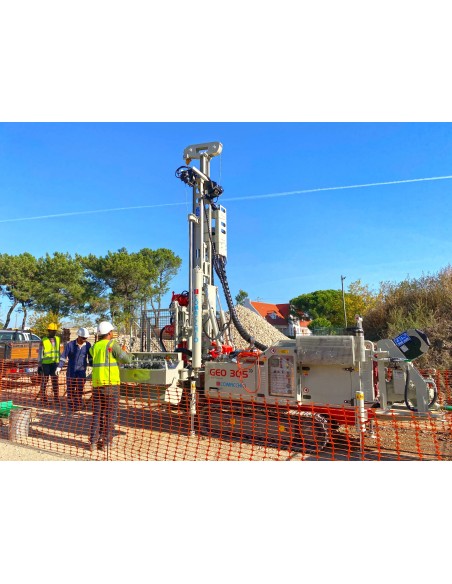

The GEO 305 from Comacchio is the ideal drill rig for geotechnical projects.

Equipped with rubber tracks, it can easily move across all types of terrain for pressuremeter tests or piezometric measurements. With a maximum rotation speed of 580 RPM, it’s also perfectly suited for core drilling.

Its gamma pump allows water drilling at a flow rate of 80 L/min with a maximum pressure of 40 bars.

The GEO 305 can also be fitted with a 3- or 4-parameter data logger to easily collect measurements during drilling operations.

Want to drill deeper, make wider holes, or simply enjoy more comfort while working? The GEO 305 is the perfect fit. The more power you need, the more it delivers!

Want more information about the GEO 305? Contact us!

Caractéristiques techniques
  1. Puissance moteur : 55,4 kW
  2. Poussée : 3 500 - 5 000 daN
  3. Traction : 3 500- 5 000 daN
  4. Torque : 335 - 1 050 daNm
  5. Vitesse max : 70 - 580 rpm
  6. Clamp range : 45 - 220 mm
  7. Weight : 3 800 - 4 500 kg
  8. Feed stroke : 1 600 - 3 600 mm
  9. Dimensions (LxlxH) : 1 400 x 3 855 x 3 030 - 5 030 mm
