MC4D Comacchio: powerful, compact and high-performance rig
MC4D Comacchio: powerful, compact and high-performance rig

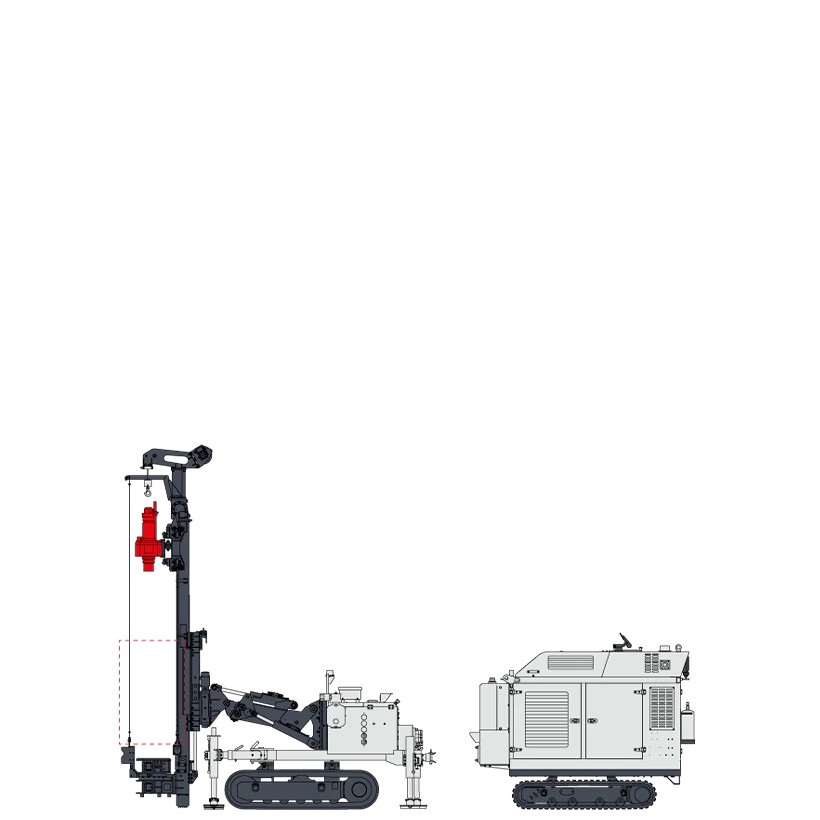

MC 4 D Drill rig

Tous les produits

With an engine power ranging from 55.1 kW to 100 kW, a stroke of 943 mm to 2,100 mm, and a push/pull capacity of 3,500 daN, our machines deliver outstanding performance.

The rotation torque ranges from 450 to 1,500 daNm, giving you significant working capacity.

The MC4D remains relatively lightweight, with an approximate weight between 3,900 kg and 4,600 kg.

Want more information about the MC4D? Contact us!

Caractéristiques techniques
  1. Puissance moteur : 55,1 - 100 kW
  2. Poussée : 3 500 daN
  3. Traction : 3 500 daN
  4. Torque : 450 - 1 500 daNm
  5. Vitesse max : 65 - 380 rpm
  6. Clamp range : 45 - 260 mm
  7. Weight : 3 900 - 4 600 kg + 2 100 - 2 700 kg
  8. Feed stroke : 943 - 2 100 mm
  9. type_machine : location
  10. Dimensions (LxlxH) : 1 990 - 2 150 x 3 500 - 3 760 x 2 215 - 3 525 mm + 2 050 - 2 715 x 1 000 - 1 610 x 1 710 - 2 050 mm
  11. type_machine_url : https://foraloc.fr/catalogue/197-mc-4d-foreuse-de-micropieux-comacchio.html
