MC 5 LR Drill rig

Tous les produits

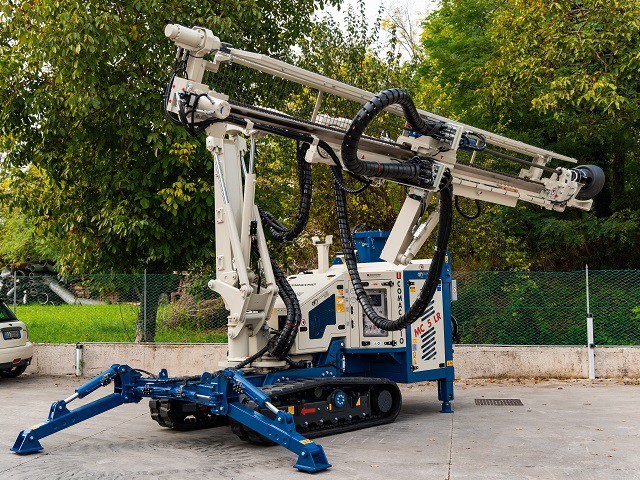

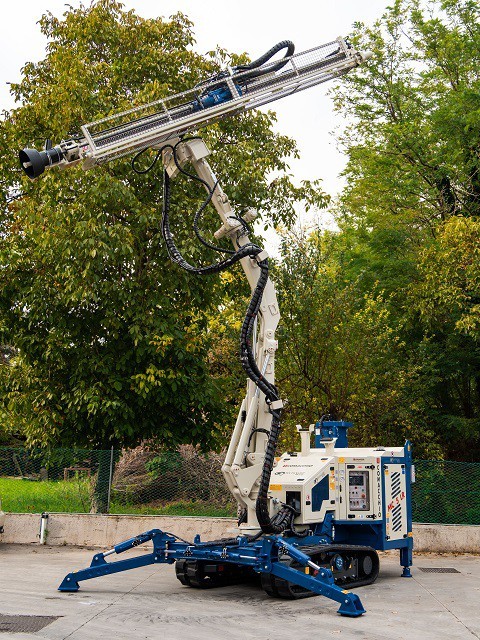

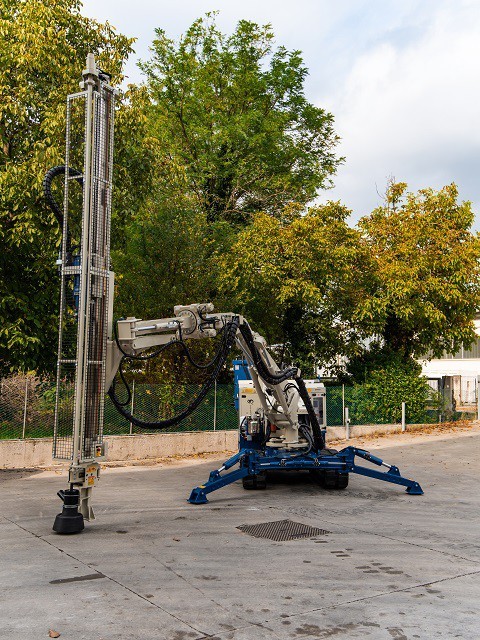

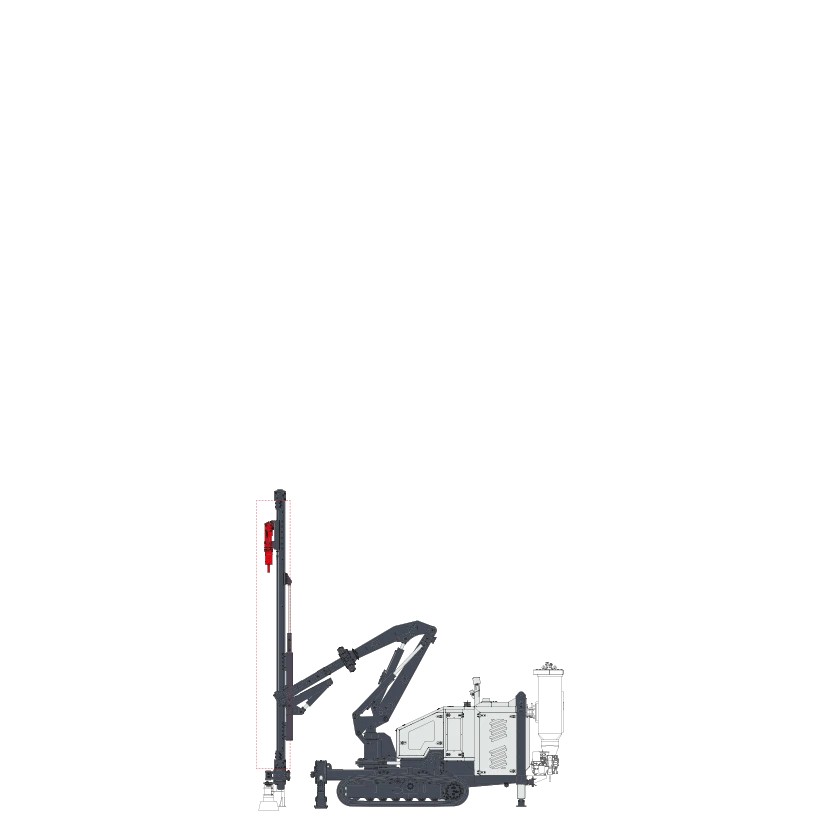

The MC 5 LR drill rig from Comacchio is a compact and versatile machine designed for micropile installation, soil nailing, and slope stabilization.

The LR version (Long Reach) of the MC 5 is characterized by its reduced footprint, extendable and oscillating rubber tracks, and exceptional maneuverability thanks to its tilting kinematic system and aluminum mast, available in multiple lengths.

Powered by a Deutz 75 kW Stage V engine, it delivers both reliability and compliance with modern environmental regulations.

Its reduced transport dimensions make it easy to move on site, while the adjustable front stabilizers ensure fast and stable setup.

Available options include an integrated hydraulic compressor and a dust collector for improved user comfort.

A top choice for drilling and construction professionals working in difficult terrain.

Caractéristiques techniques
  1. Puissance moteur : 75 kW
  2. Poussée : 1 000 daN
  3. Traction : 1 000 daN
  4. Torque : 456 - 2 210 Nm
  5. Vitesse max : 300 rpm
  6. Clamp range : 70 mm
  7. Feed stroke : 3 500 mm
  8. Dimensions (LxlxH) : 2 300 - 4 055 x 5 345 x 5 510 mm
