MC6 Comacchio: compact and powerful drill rig for civil works
MC6 Comacchio: compact and powerful drill rig for civil works
MC6 Comacchio: compact and powerful drill rig for civil works
MC6 Comacchio: compact and powerful drill rig for civil works

MC 6 Drill rig

Tous les produits

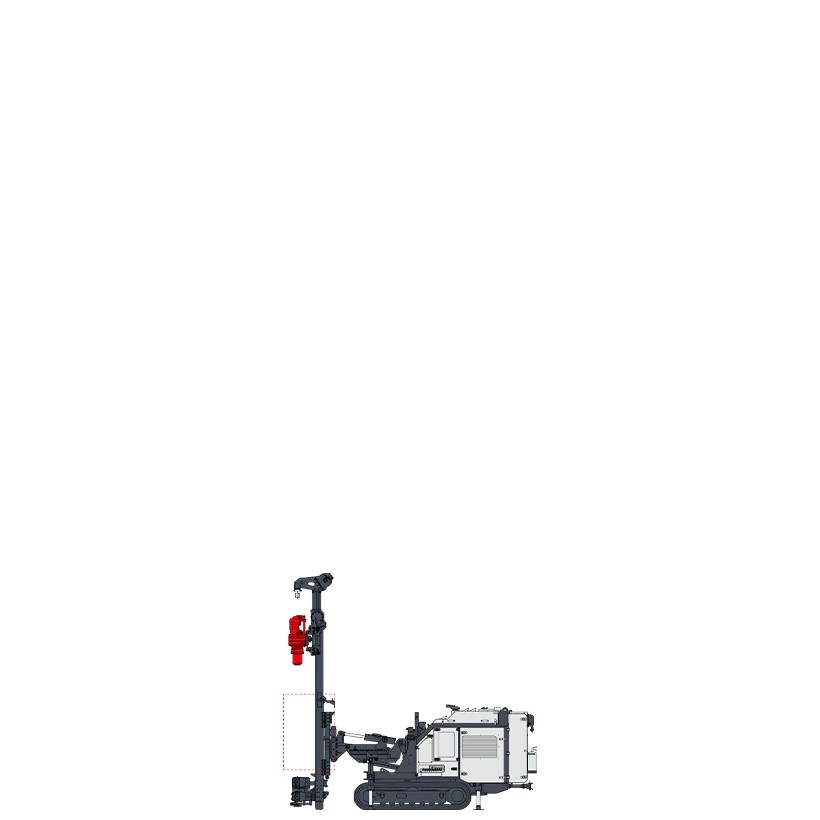

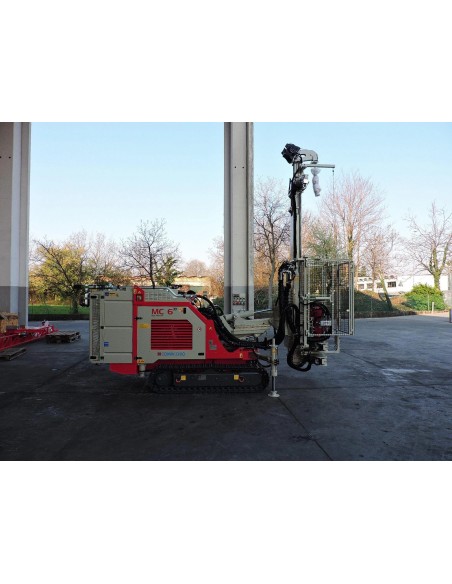

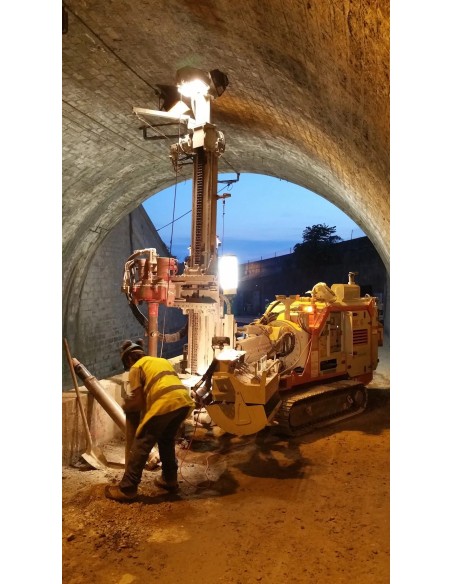

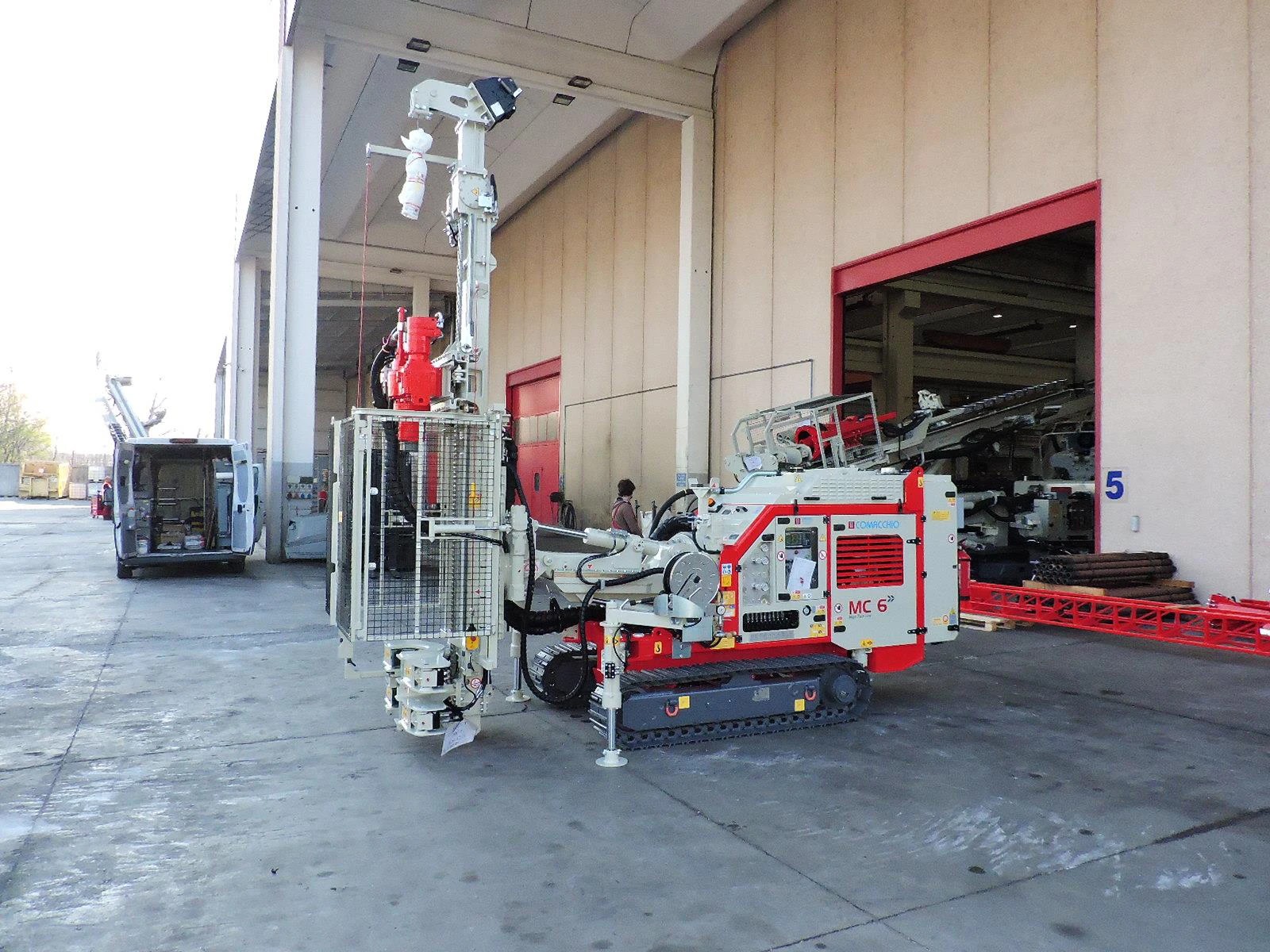

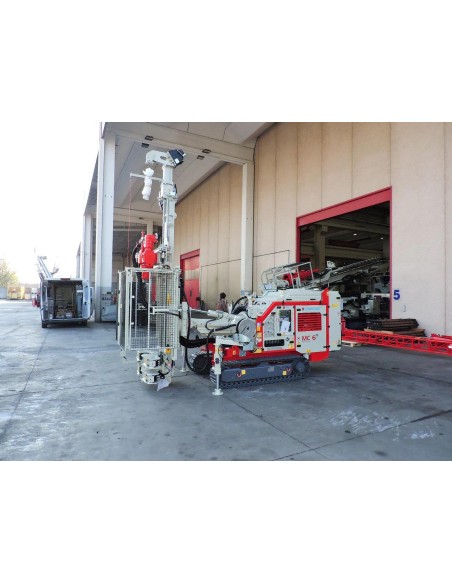

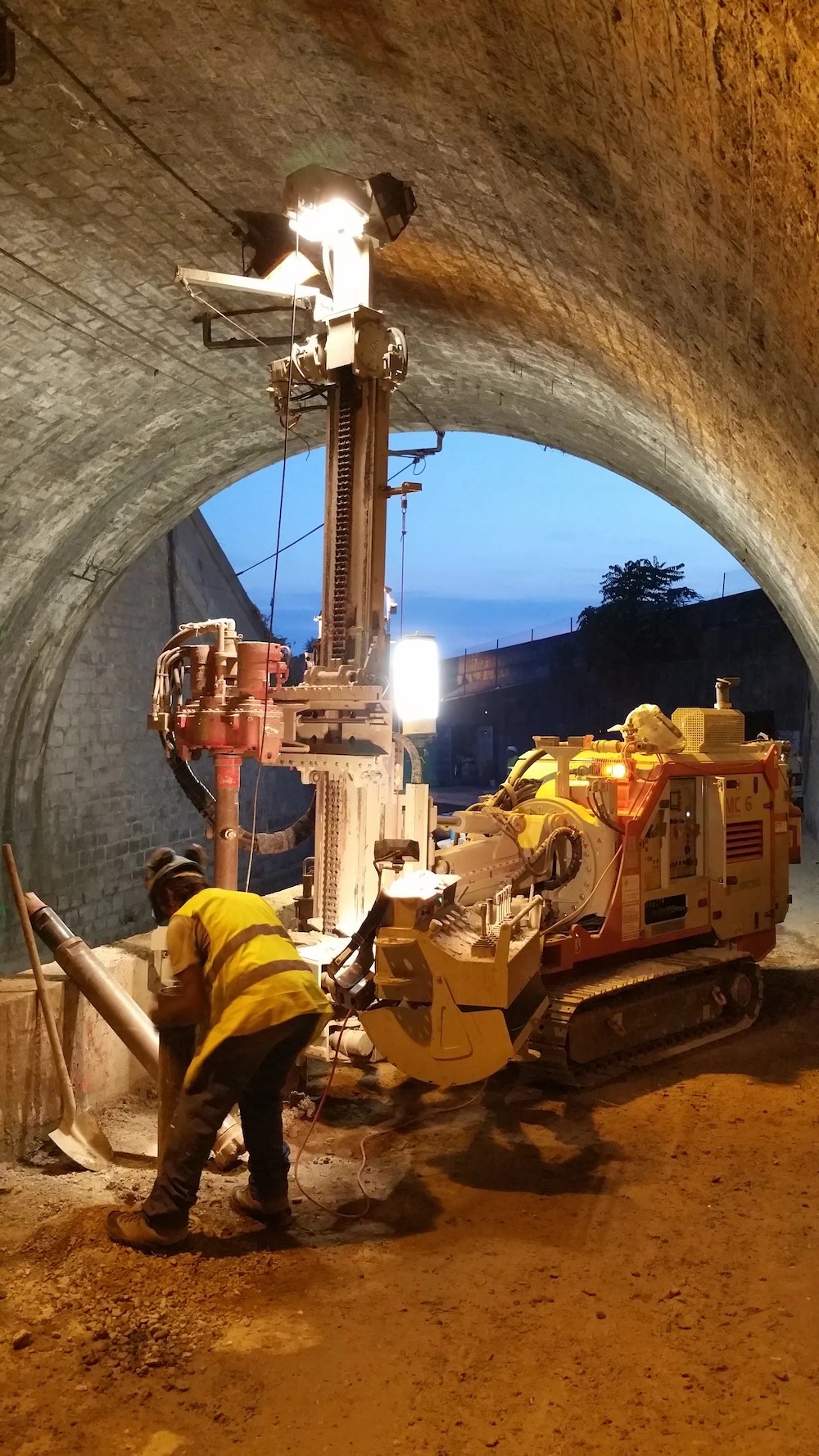

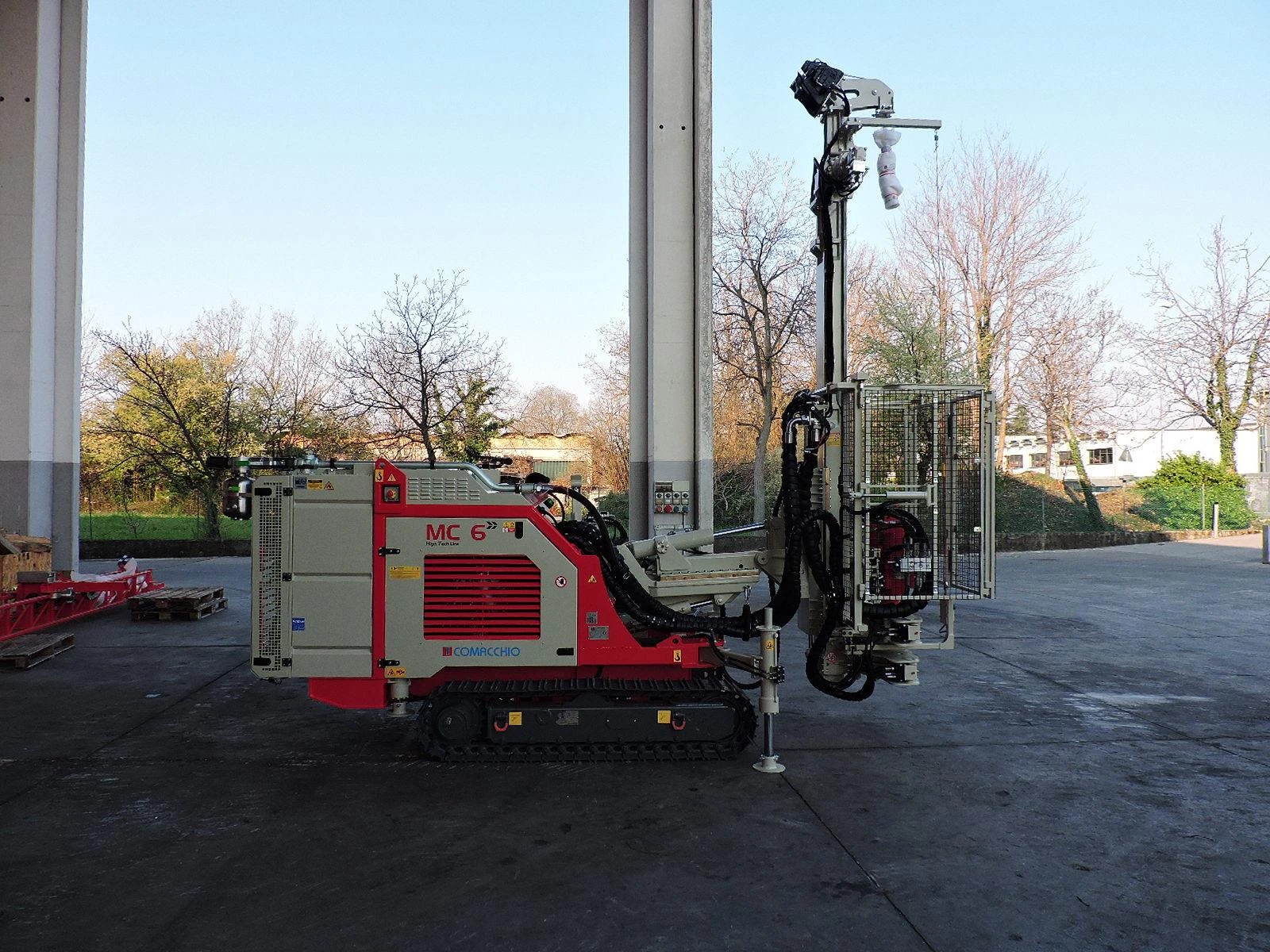

The MC6 is a hydraulic drill rig designed for civil engineering work in confined and hard-to-access environments, thanks to its compact size and multi-angle kinematics.

Equipped with an 85 kW engine, it delivers optimal power for a wide range of applications.

With a stroke range from 943 mm to 3,200 mm, it achieves a push and pull capacity of 5,000 daN, ensuring robust performance.

Its rotation torque ranges from 450 to 2,400 daNm, providing exceptional flexibility. The adjustable speed ranges from 57 to 380 rpm.

Want more information about the MC6? Contact us!

Caractéristiques techniques
  1. Puissance moteur : 85 kW
  2. Poussée : 5 000 daN
  3. Traction : 5 000 daN
  4. Torque : 450 - 2 400 daNm
  5. Vitesse max : 57 - 380 rpm
  6. Clamp range : 45 - 365 mm
  7. Weight : 5 500 kg
  8. Feed stroke : 943 - 3 200 mm
  9. type_machine : location
  10. Dimensions (LxlxH) : 1 100 - 1 600 x 4 460 - 4 760 x 5 600 mm
Retrouvez toutes vos pièces et outils de forage sur maforeuse.com
Aussi disponible à la location
L'alternative pour vos besoins ponctuels
