Foreuse MC 6 - Occasion

Tous les produits

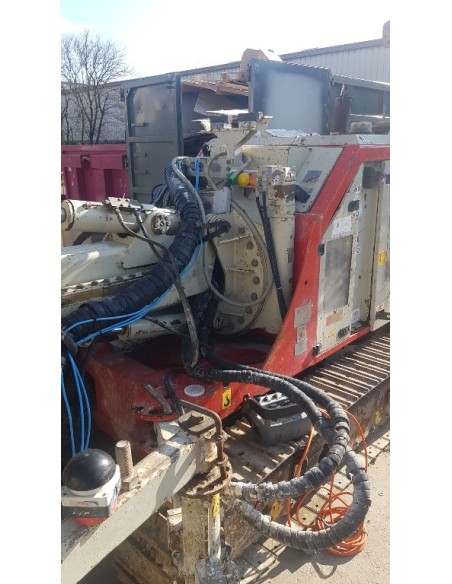

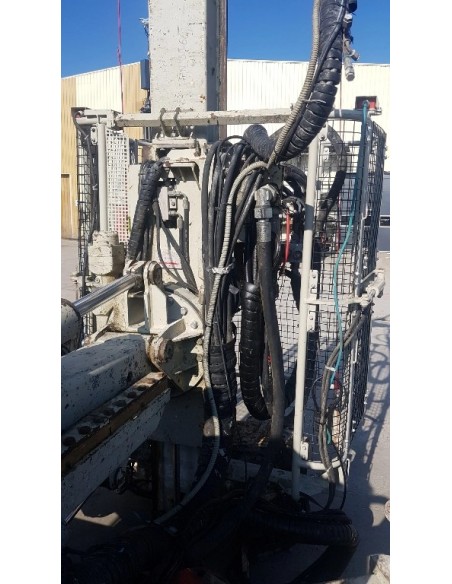

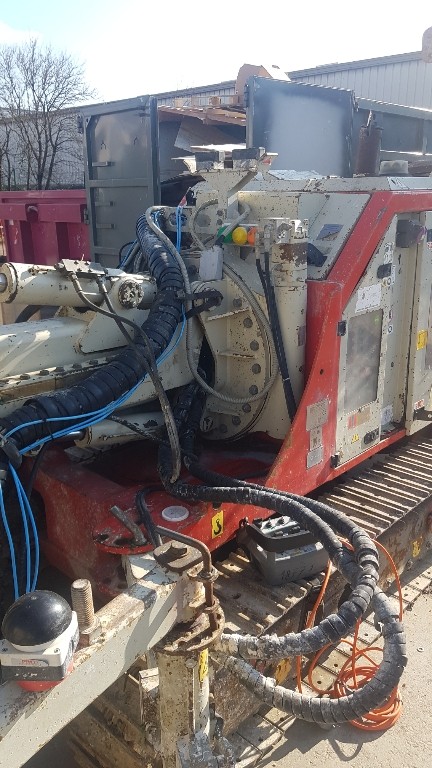

The MC6 is a hydraulic drilling rig designed for civil engineering works in confined and hard-to-reach areas, thanks to its compact size and multi-angle kinematics.

The MC6 is equipped with an 85 kW engine, providing optimal power for a wide range of tasks.

It offers a stroke ranging from 943 mm to 2100 mm. Its rotation torque varies between 300 daNm and 920 daNm, offering great flexibility. The maximum rotation speed is adjustable between 70 and 210 revolutions per minute (rpm).

Would you like more information about the MC6? Get in touch with us!

Caractéristiques techniques

Torque : 300 / 460 / 600 / 920 daNm

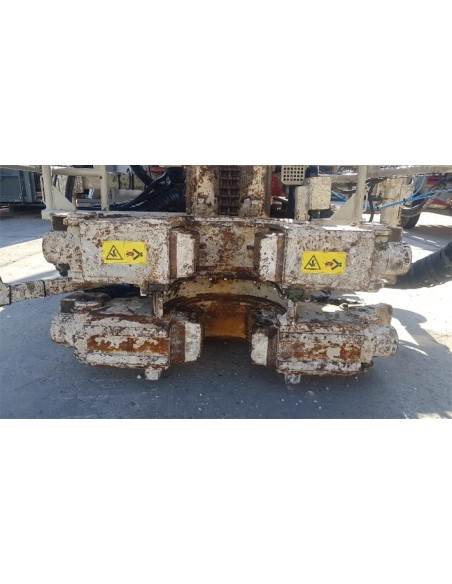

Clamp range : 45 - 320 mm
Weight : 6,5 tons

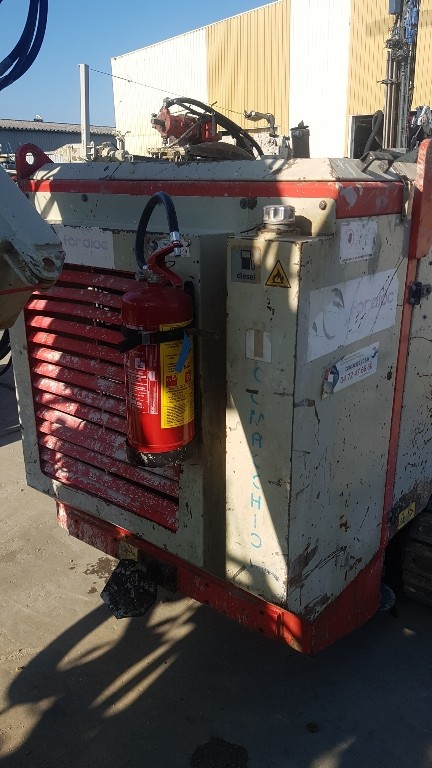

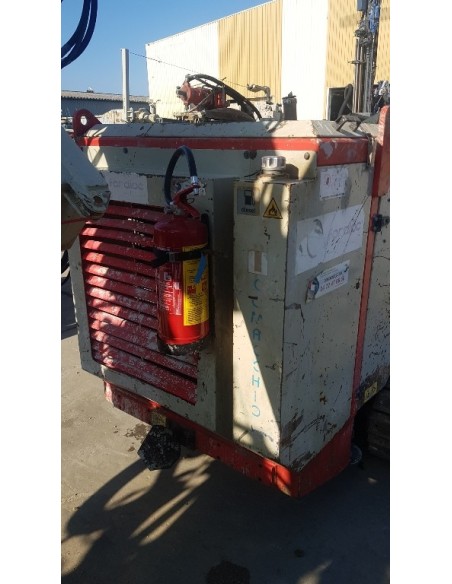

Engine : Diesel - DEUTZ TCD 3.6 L4 - 85 kW à 2 200 tr/min
Rotary head : R 900
Thread : 3’’1/2 FE
Speed min. / max. : 210 / 140 / 105 / 70 tr/min

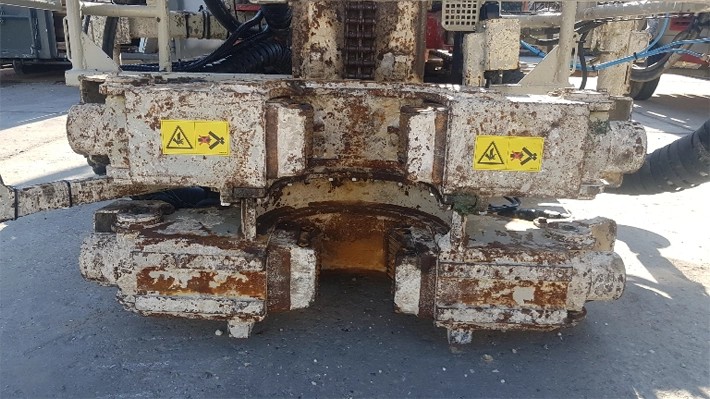

Clamp number : 2
Mast extensions : 300 / 1 200 mm
Feed stroke : 900 - 1 200 - 2 100 mm
Working length : 4 600 mm
Width : 1 160 - 1 600 mm

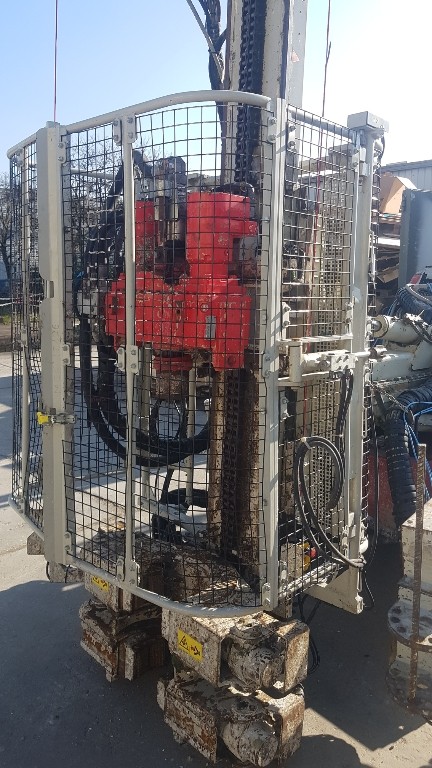

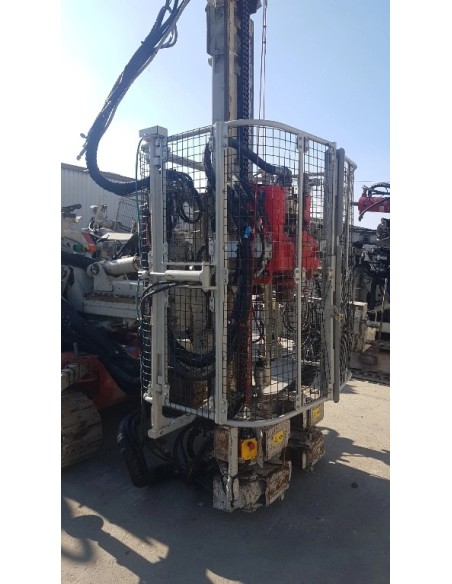

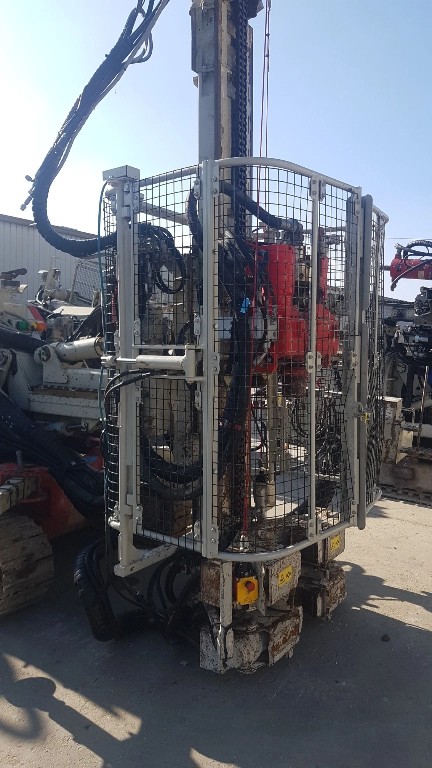

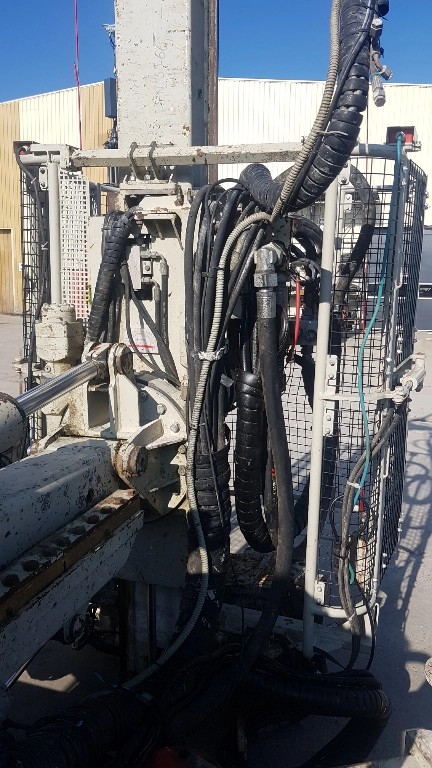

Safety cage : Included

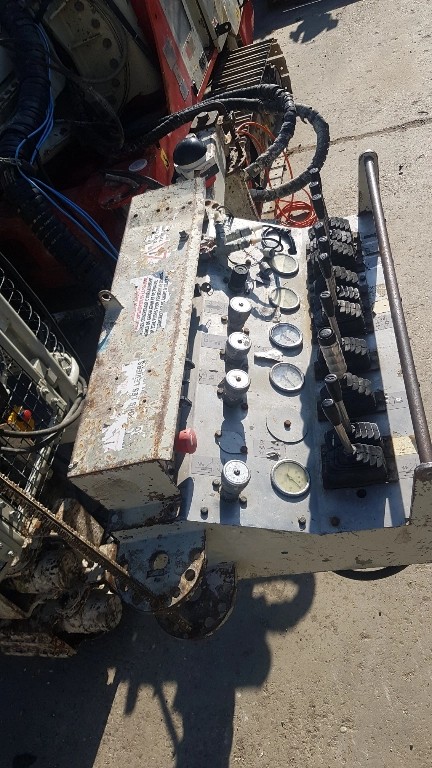

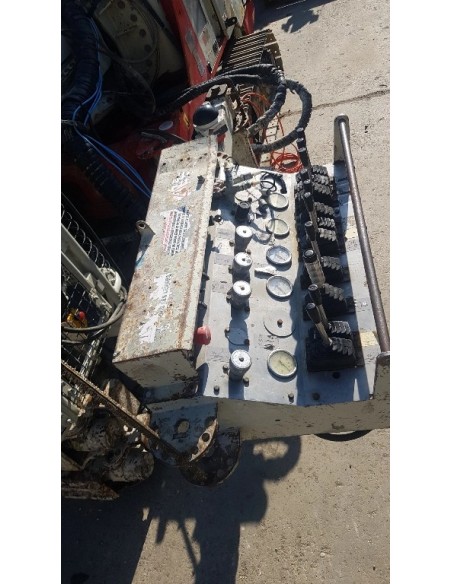

Driving control : Control console for drilling + Cable remote control for driving
Working hour : 4958
Year : 2014
Clamp force : 18 000 daN
Breakout torque : 2 100 daN
Min. Height : 2 300 mm
Max. Height : 3 450 mm - 4 350mm
Transport length : 4 350 mm
Winch : TN 09
Winch weight : 1000 kg
Transport height : 2 710 mm
