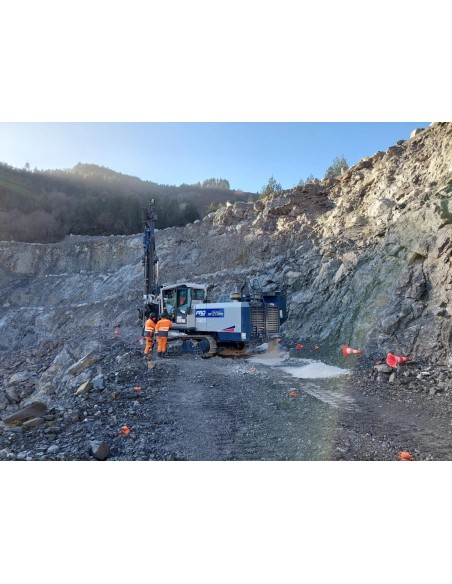

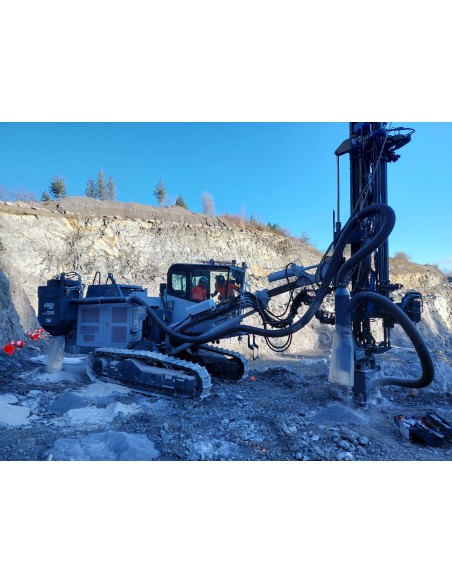

The Furukawa HCR 1200 EDSIII drill rig offers the combination of performance and economy for powerful and fast drilling. Equipped with the HD712 high-power drifter featuring a high-efficiency percussion system and dual damper system , it maximizes energy transfer for efficient drilling in various rock types, while extending accessory lifespan. Its Caterpillar C7 engine (EU Stage IIIA / EPA Tier 3 compliant) delivers 168 kW at 2,200 min-1. The HCR 1200 EDSIII features an extension boom increasing the drilling pattern area and an advanced rod changer. Its comfortable cabin offers excellent visibility and an anti-jamming device.

Technical data
  1. Engine power : 168 kW / 2 200 min-1
  2. Weight : 12 830 kg
  3. Impact Power : 18,2 kW
  4. Compressor Free Air Delivery : 7,1 m³/min
  5. Dust Collector Suction Capacity : 26 m³/min
  6. Hammer Type : HD712
