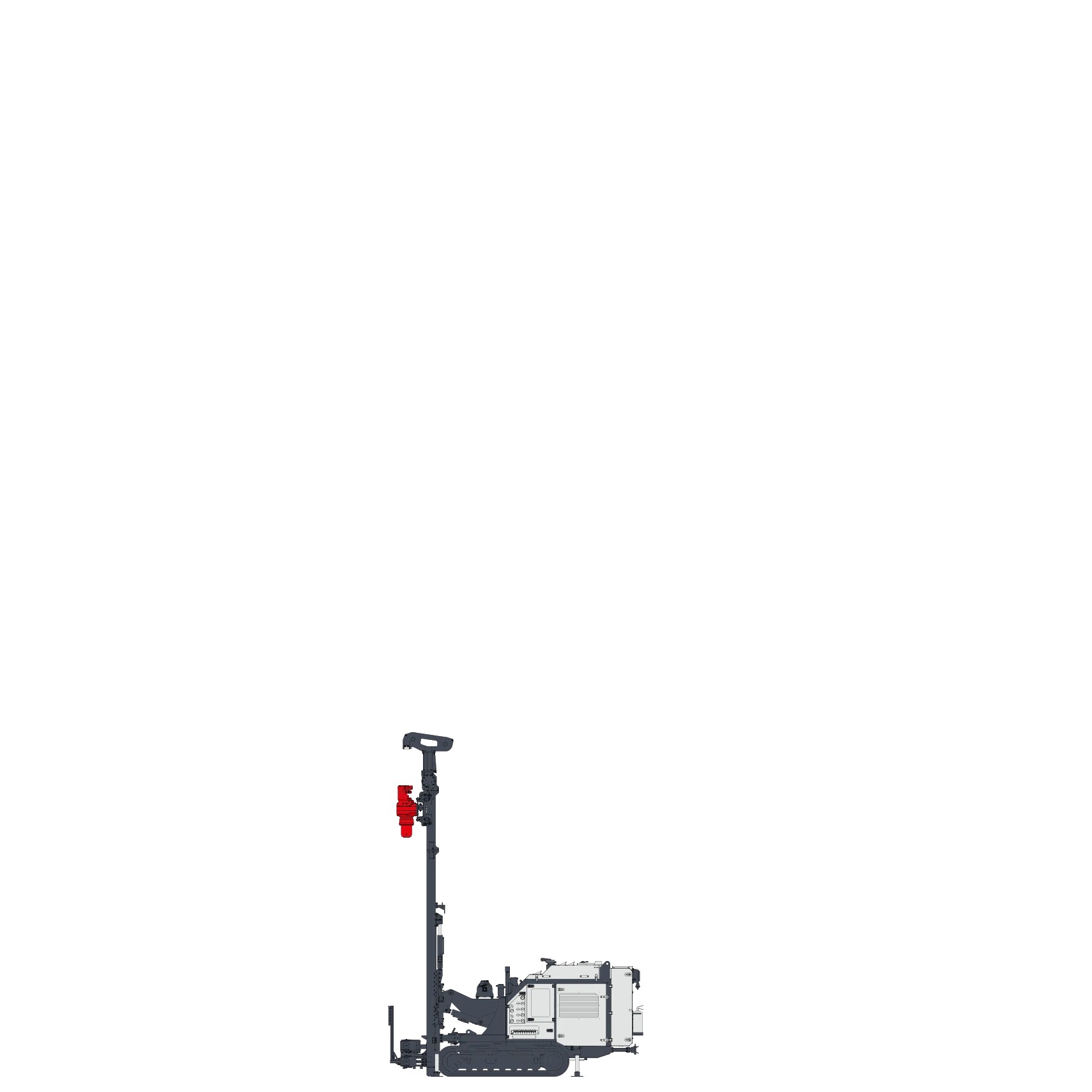

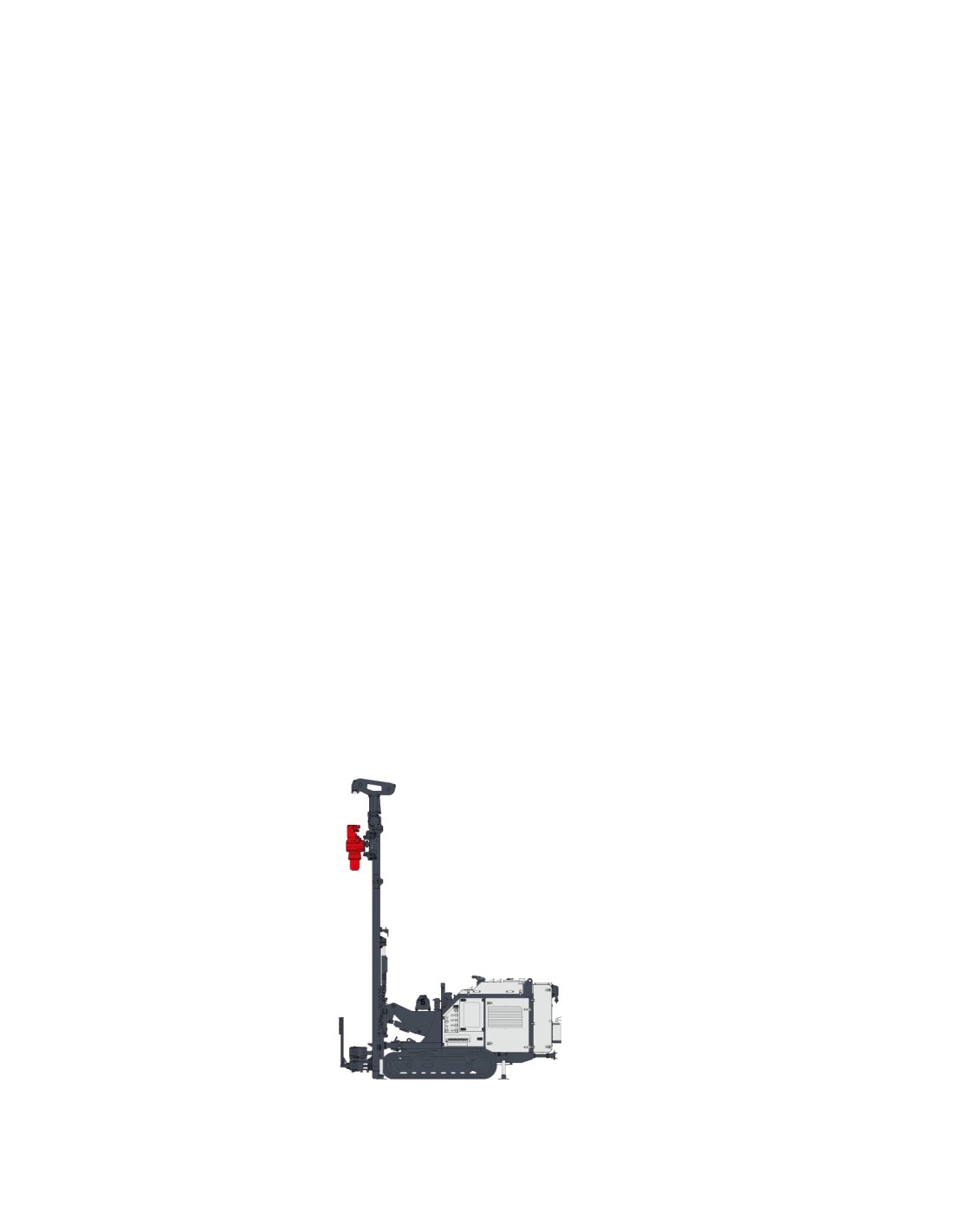

MC6V Comacchio: vertical drill rig for confined environments

MC 6 V Drill rig

Tous les produits

The MC6V is specifically designed for vertical drilling operations in confined spaces and/or areas with limited height.

It stands out for its compact design and is powered by a strong 100 kW engine. The machine offers a stroke range of 1,450 to 3,300 mm.

The MC6V can be fitted with a wide range of rotary heads, making it suitable for both rotary and roto-percussive drilling tasks.

Thanks to its variable rotation torque from 450 to 2,325 daNm, it is extremely versatile. It operates at a maximum speed of 80 rpm, delivering optimal performance in a variety of drilling scenarios.

With clamp diameters ranging from 45 to 365 mm, it easily adapts to different job configurations. The rig weighs approximately 5,800 to 6,000 kg.

The machine is fully operated via the Comacchio radio-control system for enhanced flexibility and safety.

Want more information about the MC6V? Contact us!

Caractéristiques techniques
  1. Puissance moteur : 100 kW
  2. Poussée : 5 400 daN
  3. Traction : 5 400 daN
  4. Torque : 450 - 2 325 daNm
  5. Vitesse max : 80 rpm
  6. Clamp range : 45 - 365 rpm
  7. Weight : 5 800 - 6 000 kg
  8. Feed stroke : 1 450 - 3 300 mm
