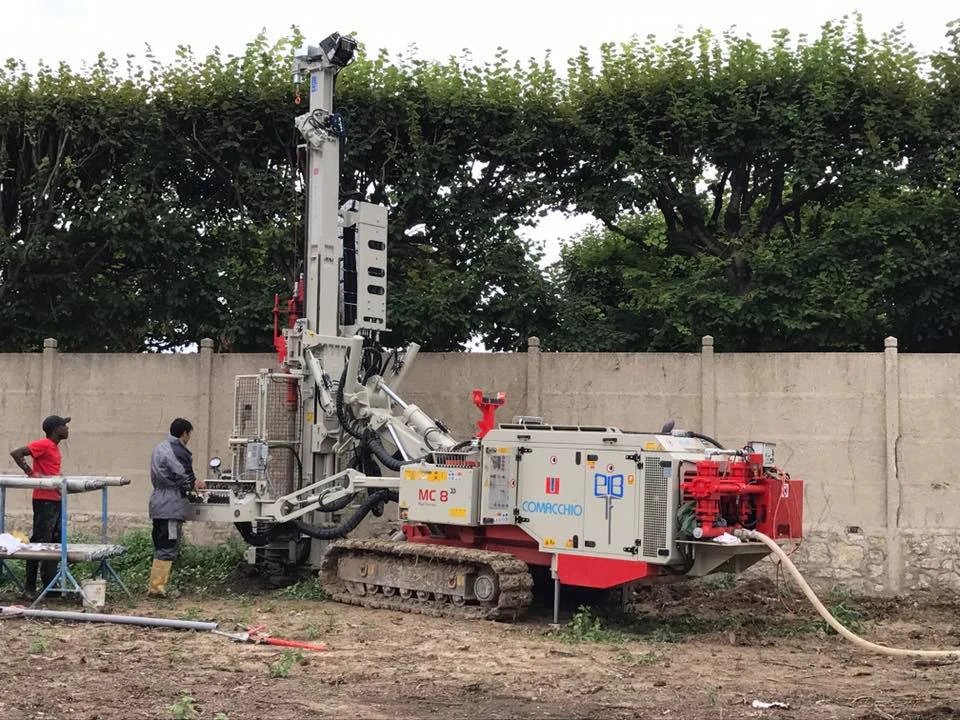

The MC 8 is a compact-to-medium-sized hydraulic drill rig offering power and versatility. Equipped with an 85–86 kW engine, it's designed for civil engineering works such as micropiles, anchors, and ground reinforcement.

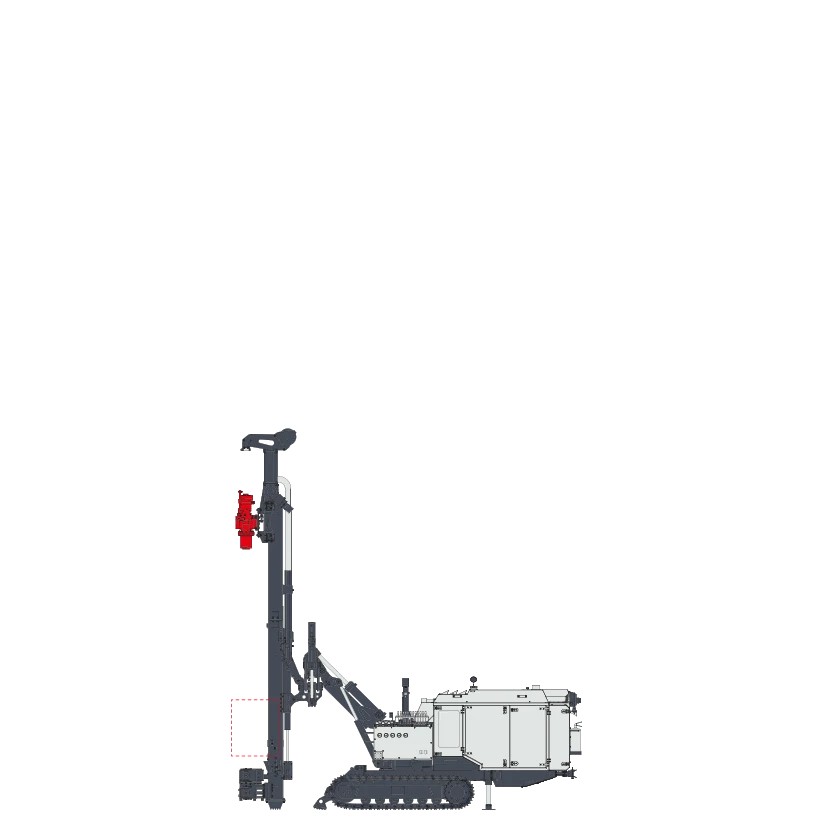

Its compact size and approximate weight of 7,000–8,000 kg, combined with multi-angle kinematics enabled by its patented mast articulation, make it suitable even for confined sites.
With a stroke of 1,650–3,900 mm, push/pull force of 5,000 daN, and torque between 450 and 2,400 daNm, it delivers outstanding performance.
The maximum rotation speed of 750 rpm ensures efficient operation, and the clamp diameter range of 45 to 325 mm provides excellent adaptability to different tooling and conditions.
Want more information about the MC 8? Contact us!
- Puissance moteur : 85 - 86 kW
- Poussée : 5 000 daN
- Traction : 5 000 daN
- Torque : 450 - 2 400 daNm
- Clamp range : 45 - 325 mm
- Weight : 7 000 - 8 000 kg
- Speed min. / max. : 57 - 750 rpm
- Feed stroke : 1 650 - 3 900 mm
- type_machine : location
- type_machine_url : https://foraloc.fr/catalogue/583-mc-8-foreuse-de-micropieux-comacchio.html
