MC 9 Comacchio: autonomous drill for hard-to-reach sites
MC 9 Comacchio: autonomous drill for hard-to-reach sites

MC 9

All products

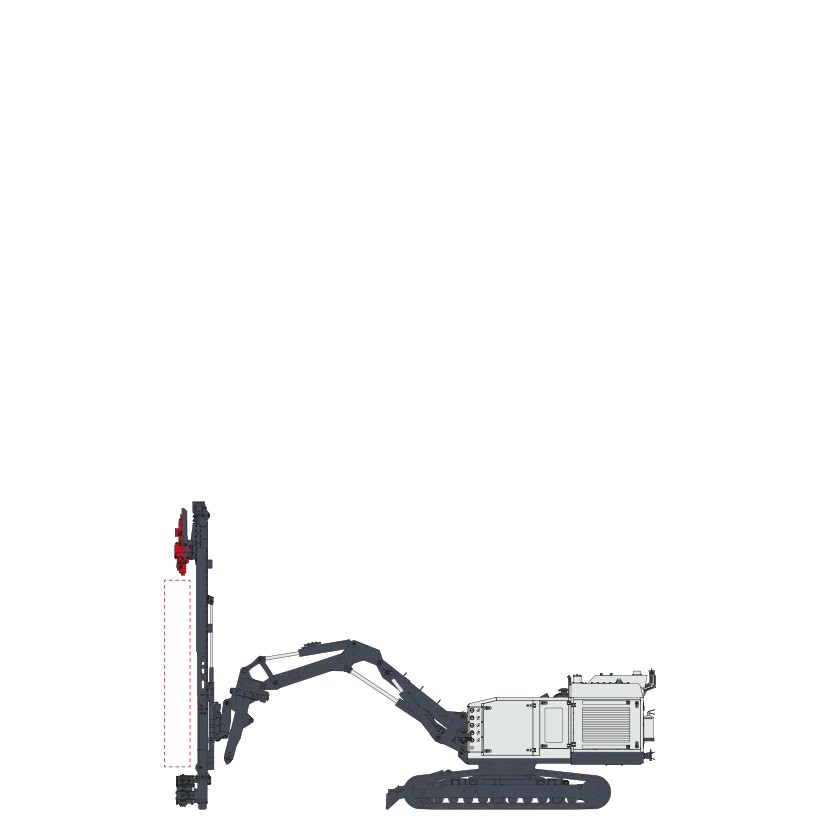

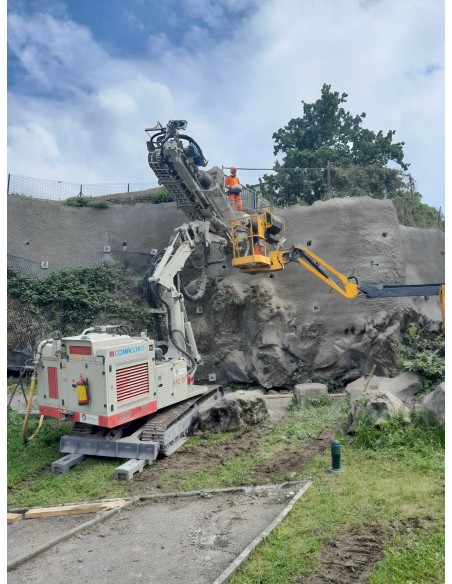

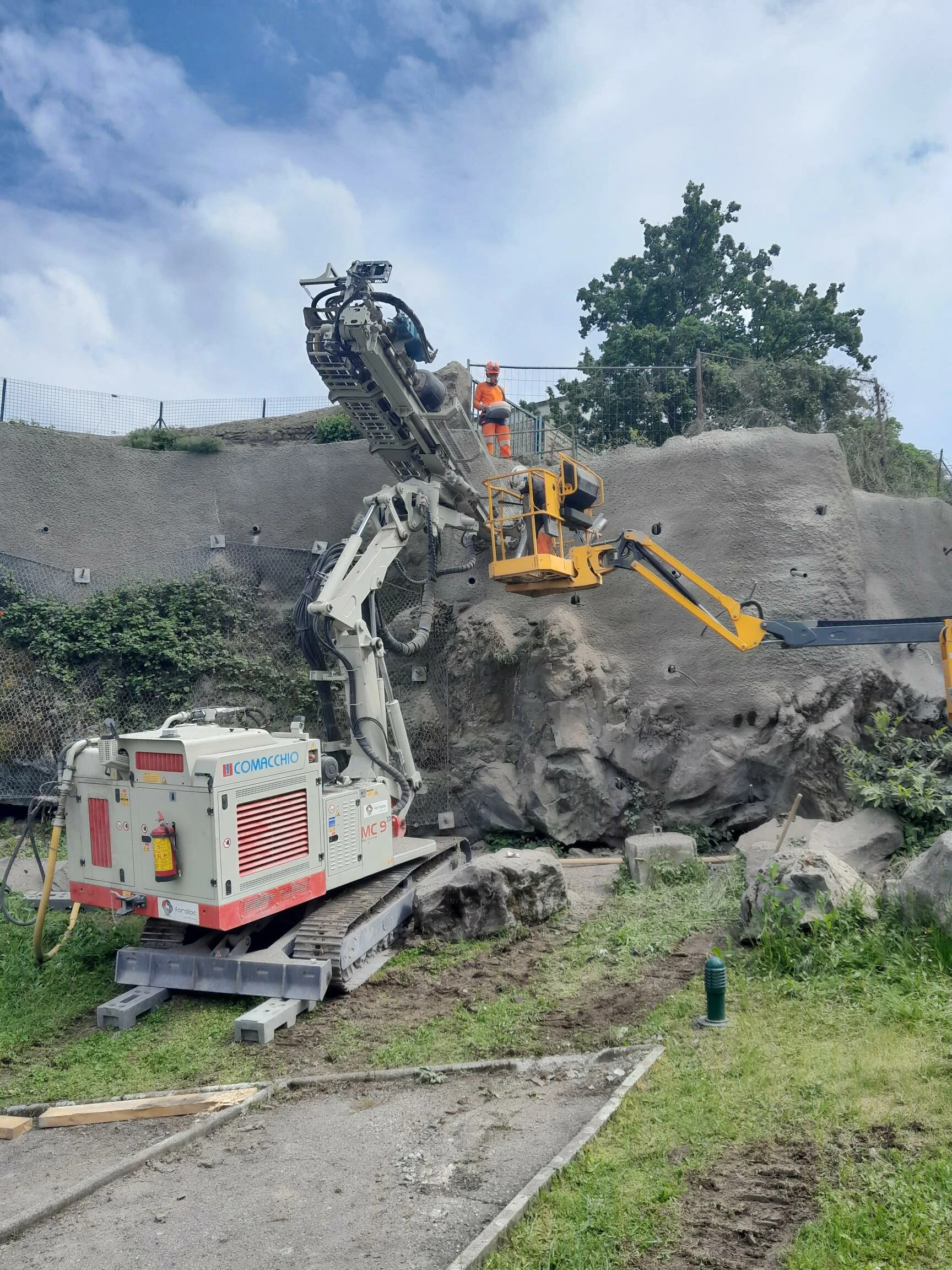

The MC 9 is a compact and autonomous hydraulic drill rig with an onboard power unit, offering 97–100 kW of power. It is primarily designed for anchor installation and slope stabilization.

With its small footprint, multi-angle kinematics, and light weight (9,500–10,000 kg), the MC 9 is an ideal solution for confined or difficult-access sites.

It features a 3,400 mm stroke, 2,500 daN of push and pull force, and can handle clamp diameters from 32 to 360 mm.

The rotation torque ranges from 88 to 1,100 daNm, and its maximum rotation speed reaches 360 rpm, making it highly capable for demanding drilling tasks.

Want more information about the MC 9? Contact us!

Technical data
  1. Engine power : 97 - 100 kW
  2. Poussée : 2 500 daN
  3. Traction : 2 500 daN
  4. Torque : 88 - 1 100 daNm
  5. Clamp range : 32 - 360 mm
  6. Weight : 9 500 - 10 000 kg
  7. Speed min. / max. : 43 - 360 rpm
  8. type_machine : location
  9. type_machine_url : https://foraloc.fr/catalogue/193-mc-9-foreuse-de-micropieux-comacchio.html
Source all your drilling parts and tools on maforeuse.com
Also available for rent.
The alternative for your occasional needs.
See product
