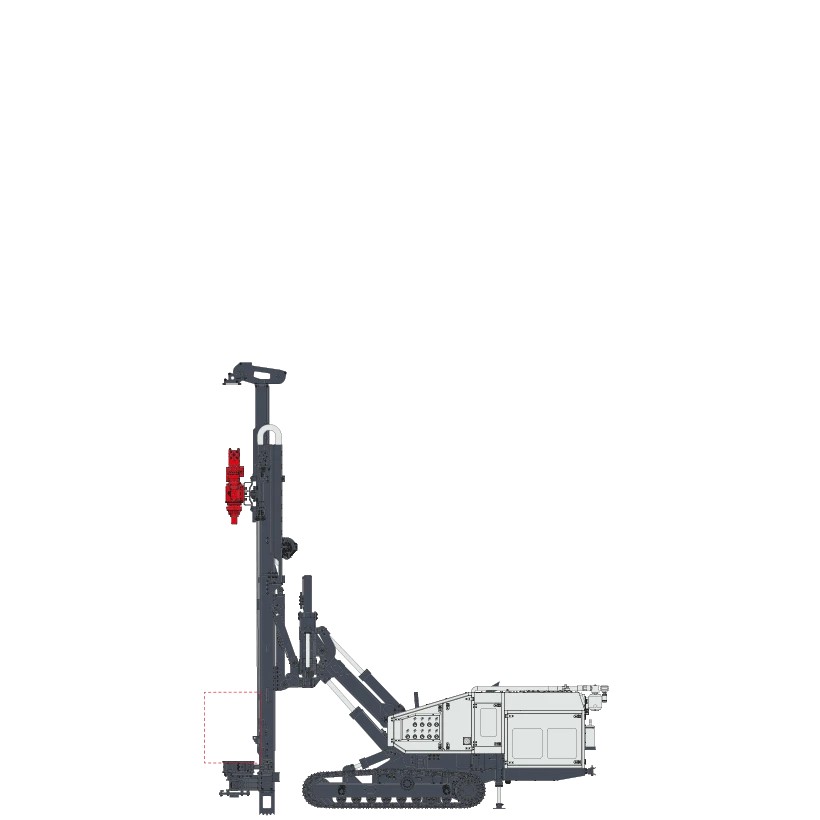

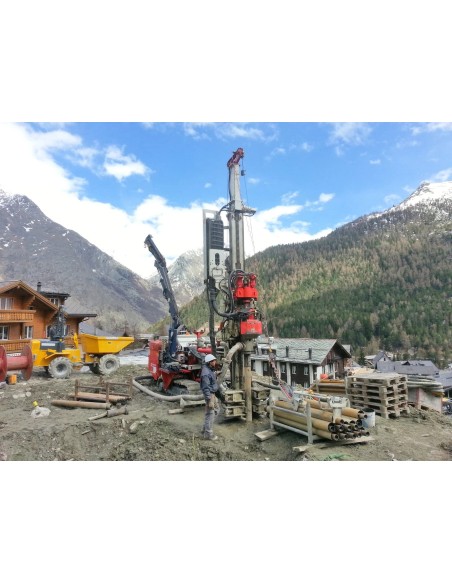

MC14 Comacchio: compact and stable all-terrain drill rig
MC14 Comacchio: compact and stable all-terrain drill rig

MC 14

All products

The MC 14 drill rig from Comacchio stands out for its high performance despite compact dimensions.

The new MC 14 features an innovative crawler system that improves both stability and maneuverability on rough terrain, while maintaining an overall width under 1,800 mm.

This hydraulic drill rig can be used in confined spaces, thanks to its compact size and mast articulation.

The MC 14 can be equipped with a wide range of rotary heads and hydraulic hammers.

Want more information about the MC 14? Contact us!

Technical data
  1. Engine power : 129,4 kW
  2. Feed stroke : 2 540 - 4 040 mm
  3. Poussée : 5 500 daN
  4. Traction : 5 500 daN
  5. Torque : 1 000 - 2 400 daNm
  6. Clamp range : 45 - 360 mm
  7. Weight : 10 000 - 13 000 kg
  8. Speed min. / max. : 57 - 290 rpm
Source all your drilling parts and tools on maforeuse.com
