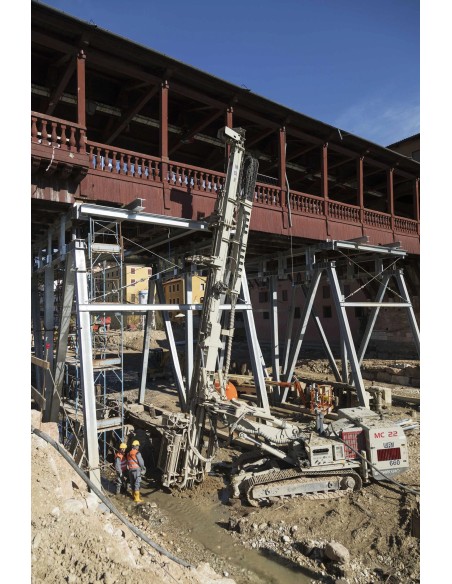

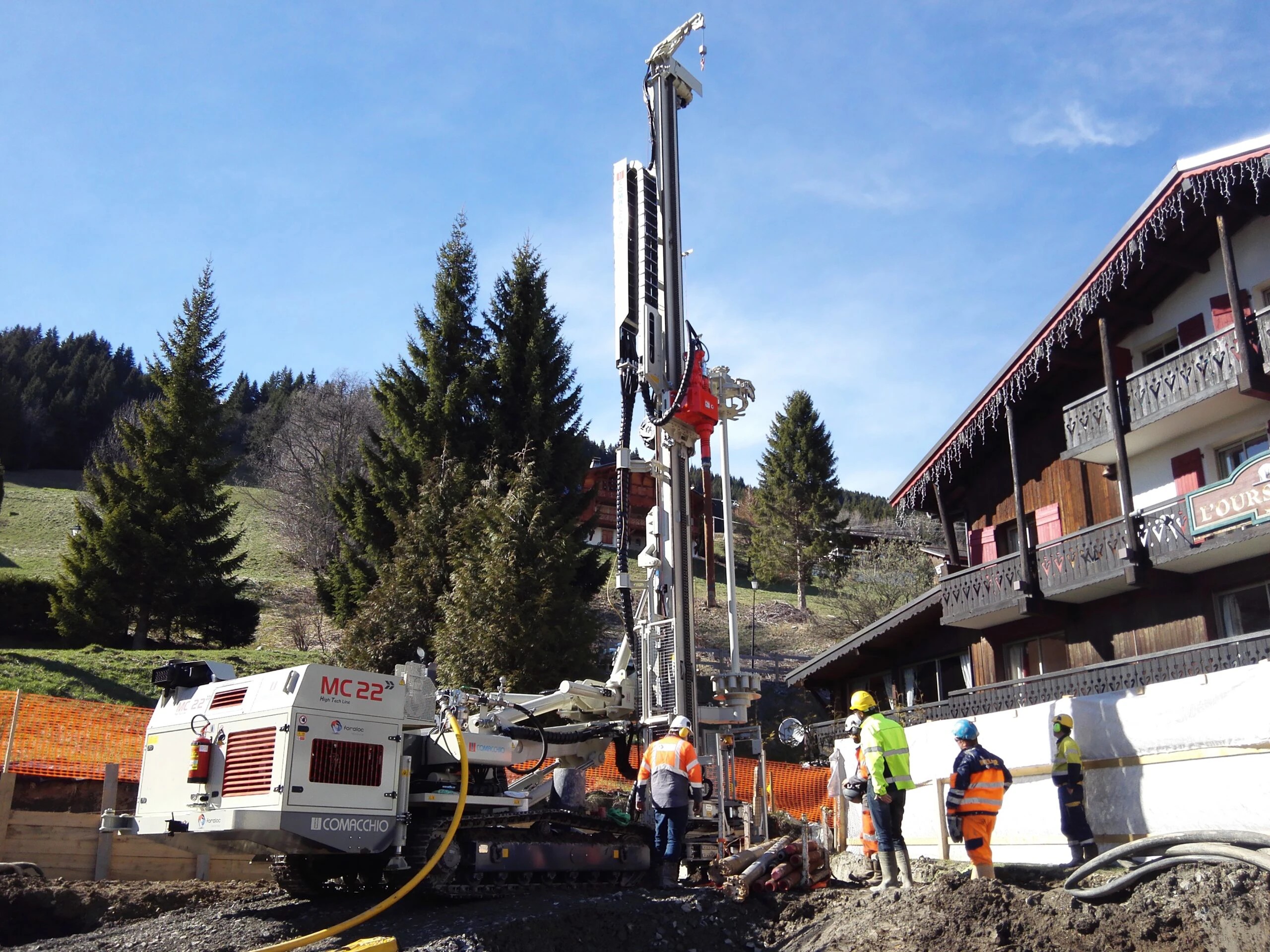

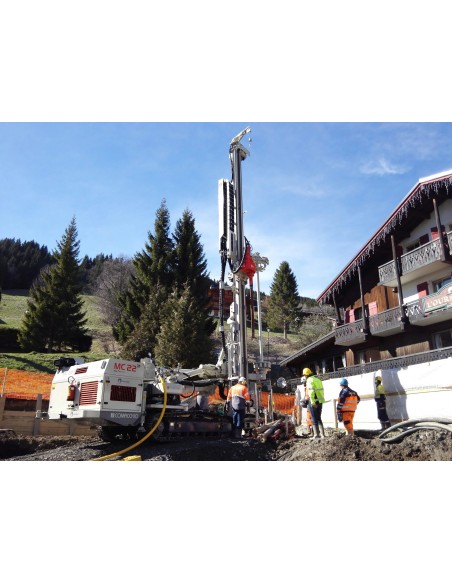

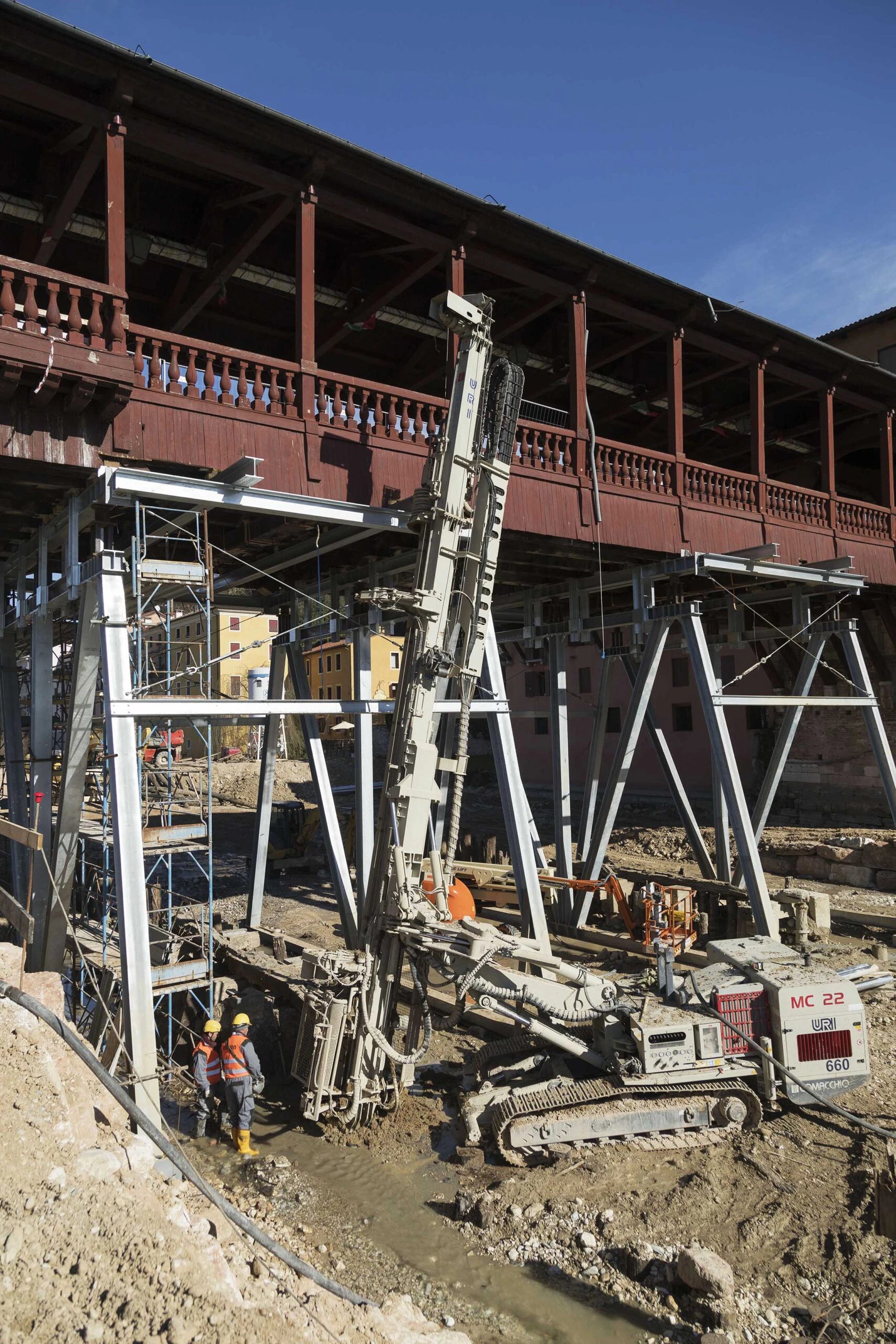

MC22 Comacchio: articulated drill rig for heavy-duty work

MC 22 Drill rig

Name: MC 22 Drill rig
Brand: Comacchio
SKU: 73
Availability: InStock

Tous les produits

The MC 22 was the first drill rig equipped with Comacchio’s innovative articulated mast system.

The wide range of positioning possibilities enabled by this system, combined with multi-angle kinematics, allows the MC 22 to be used for various civil engineering applications (micropiles, anchors, jet grouting, and general consolidation), even in confined spaces.

With an engine power ranging from 147 kW to 168 kW, a stroke from 4750 mm to 10200 mm, push and pull force of 8000 daN, and a torque output from 1300 daNm to 3200 daNm, this machine is built to meet your most demanding requirements. It offers a rotation speed of 34 to 350 rpm and has an approximate weight between 21000 kg and 24300 kg.

Want more information about the MC 22? Contact us!

Caractéristiques techniques

Puissance moteur : 147 - 168 kW
Feed stroke : 4 750 - 10 200 mm
Poussée : 8 000 daN
Traction : 8 000 daN
Torque : 1 300 - 3 200 daNm
Clamp range : 45 - 520 mm
Weight : 21 000 - 24 300 kg
Speed min. / max. : 34 - 350 rpm
