MCE-100: powerful and adaptable drilling slide

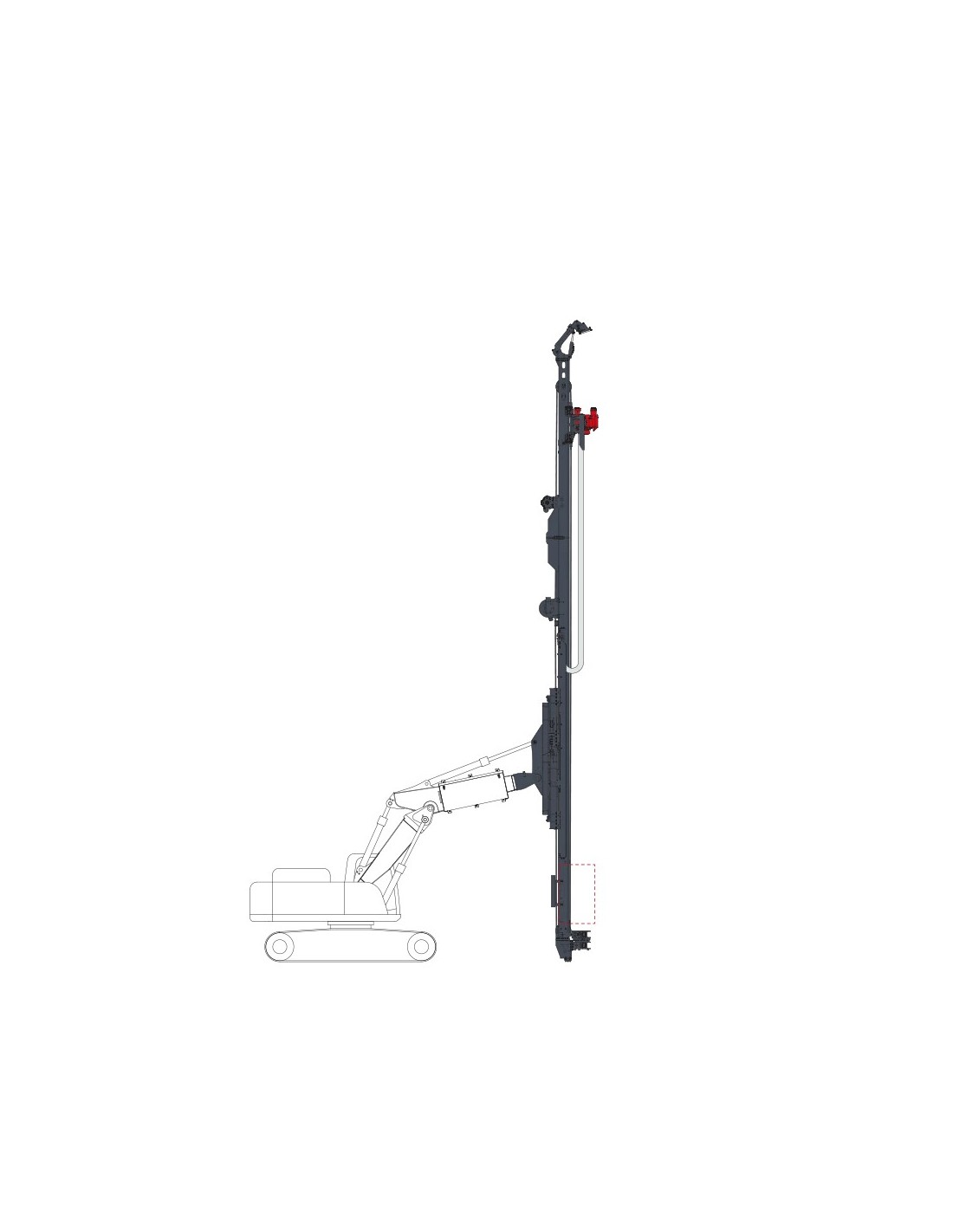

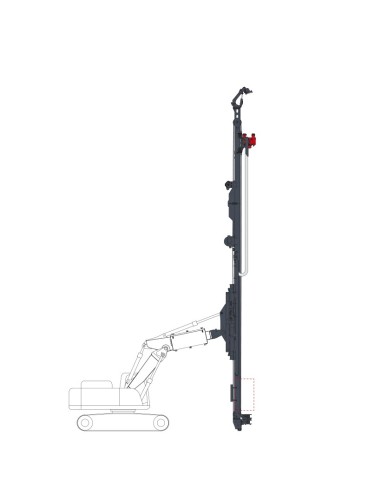

MC-E 100 drilling slide

Tous les produits

The MCE-100 drilling slide is a high-performance solution designed to meet the toughest drilling challenges while delivering the reliability and flexibility needed for successful drilling projects.

With a useful stroke of 13,000 mm, it allows for significant drilling depths.

Its strong thrust of 10,000 daNm provides the power required to penetrate even the hardest rock formations.

It is equipped with jaws for diameters ranging from 45 to 420 mm, allowing compatibility with a wide variety of drilling rods and tools.

Want to learn more about the MCE-100 slide? Contact us!

Caractéristiques techniques
  1. Feed stroke : 13 000 mm
  2. Poussée : 10 000 daN
  3. Traction : 15 000 daN
  4. Torque : 800 - 3 200 daNm
  5. Clamp range : 45 - 420 mm
  6. Weight : 10 000 - 10 500 kg
  7. Speed min. / max. : 22 - 150 rpm
  8. Poids du porteur : 40 - 50 t
