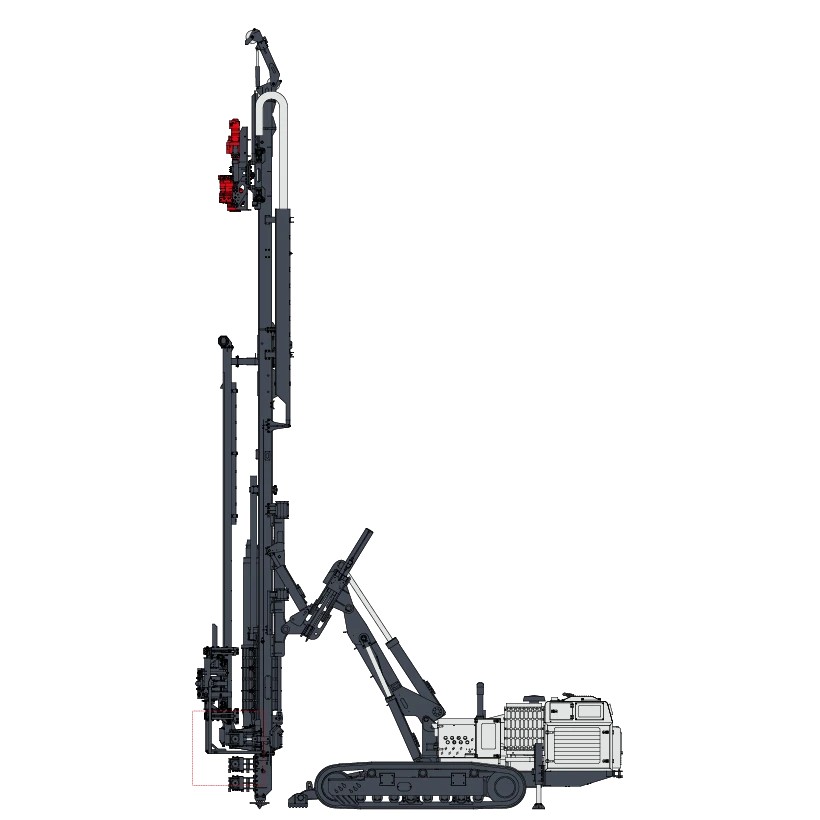

MC28 A HD Comacchio: heavy-duty drill with rod loader

MC 28 A HD Drill rig

Tous les produits

Developed from the MC 28 platform, the MC 28 A HD is a drill rig specially designed for anchoring and general consolidation works, featuring an innovative hydraulic rod and casing loader system.

The loader holds up to 7 pairs of rods and casings of various diameters, up to 3.5 meters in length. Thanks to its highly powerful engine, the MC 28 A HD can be equipped with a wide selection of rotary heads, hydraulic drifters, dual head systems, water and mud pumps, making it suitable for all rotary and rotary-percussive drilling techniques.

The MC 28 A HD weighs between 29,000 and 31,000 kg, making it a robust and stable machine on all types of terrain.

Want to learn more about the MC 28 A HD? Contact us!

Caractéristiques techniques
  1. Puissance moteur : 225 kW
  2. Feed stroke : 5 800 - 9 600 mm
  3. Poussée : 9 500 daN
  4. Traction : 9 500 daN
  5. Torque : 1 500 - 5 500 daNm
  6. Clamp range : 45 - 365 mm
  7. Weight : 29 000 - 31 000 kg
  8. Speed min. / max. : 48 - 260 rpm
