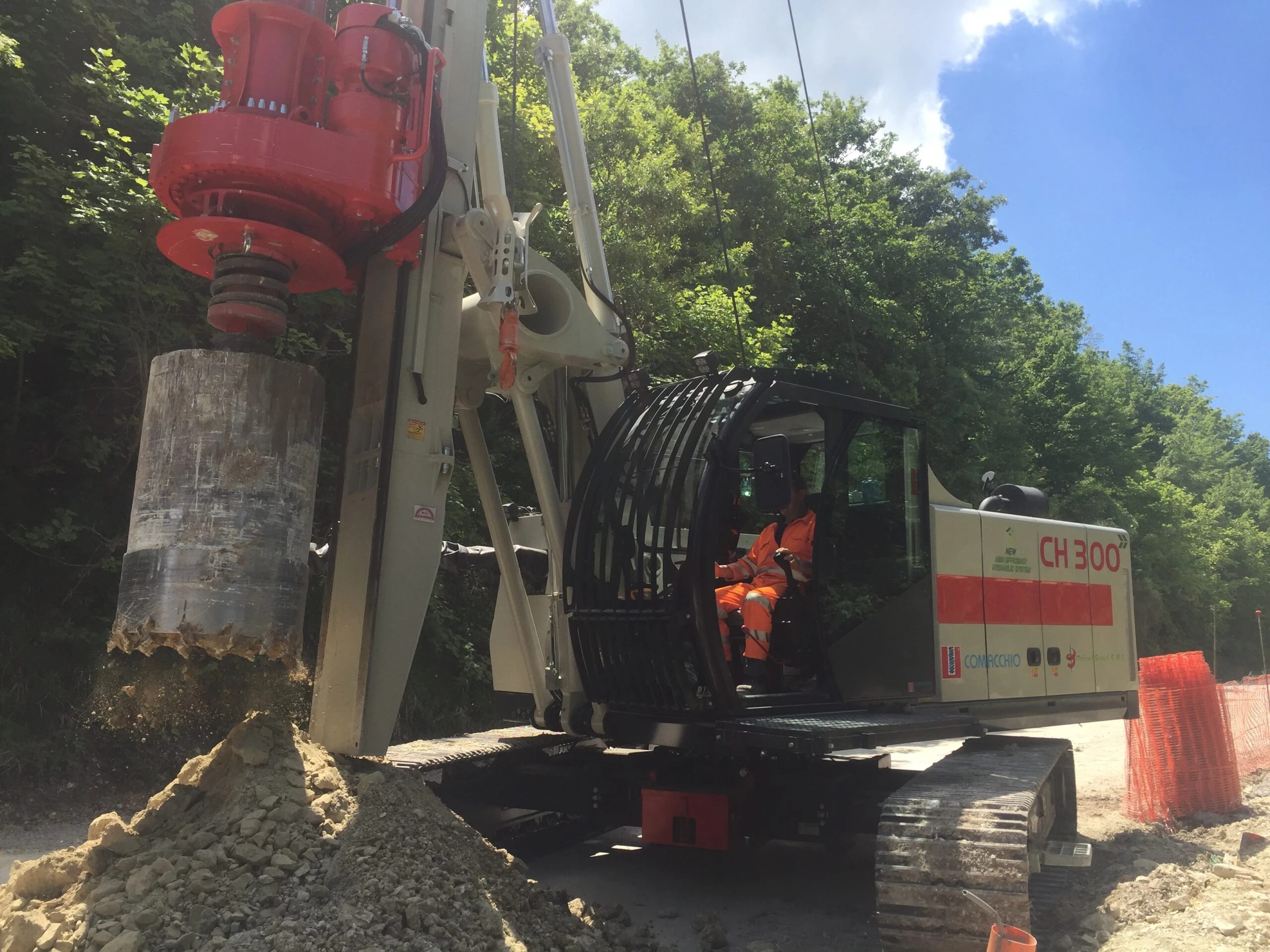

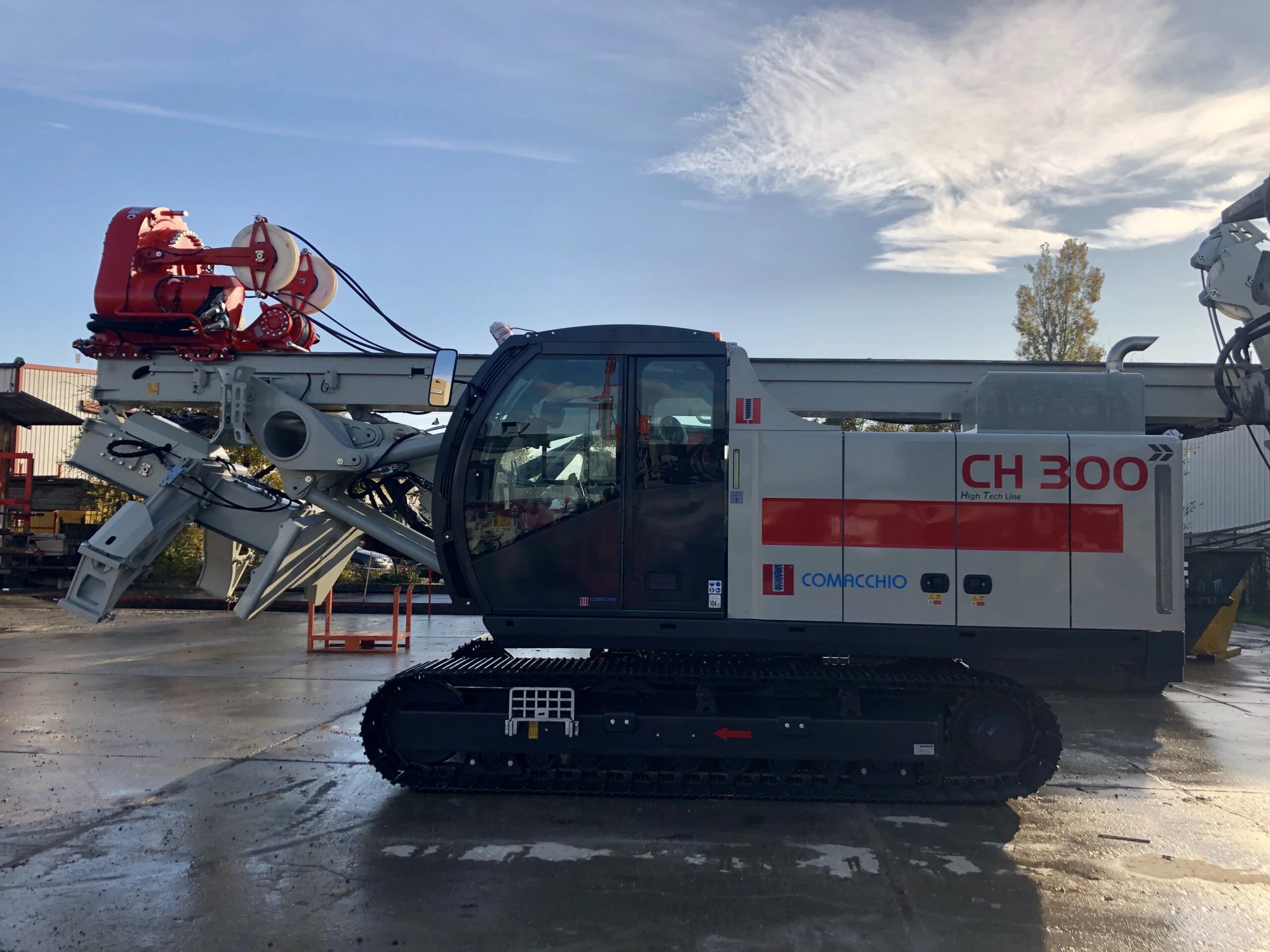

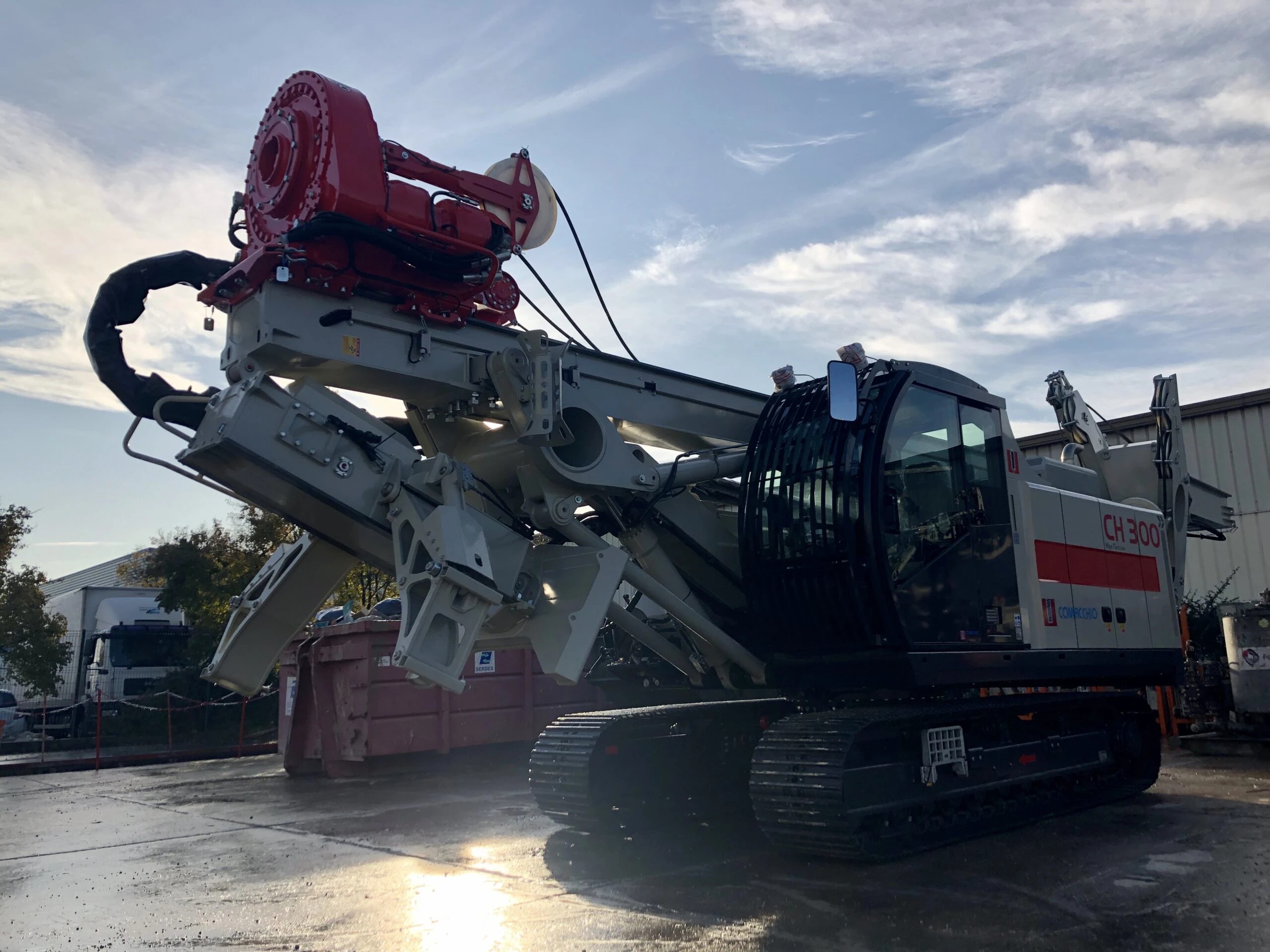

CH 300 Comacchio: compact rig for large diameter piles
CH 300 Comacchio: compact rig for large diameter piles
CH 300 Comacchio: compact rig for large diameter piles
CH 300 Comacchio: compact rig for large diameter piles

CH 300 Drill rig

Tous les produits

With a transport weight of under 30 tons, even with the rotary head and Kelly bar installed, the CH 300 is the most compact model in Comacchio's CH range, designed for large-diameter piling jobs.

Despite its light weight, this rig is fully self-erecting, offering excellent stability and high torque. These features allow it to perform drilling tasks that would typically require much larger and heavier equipment.

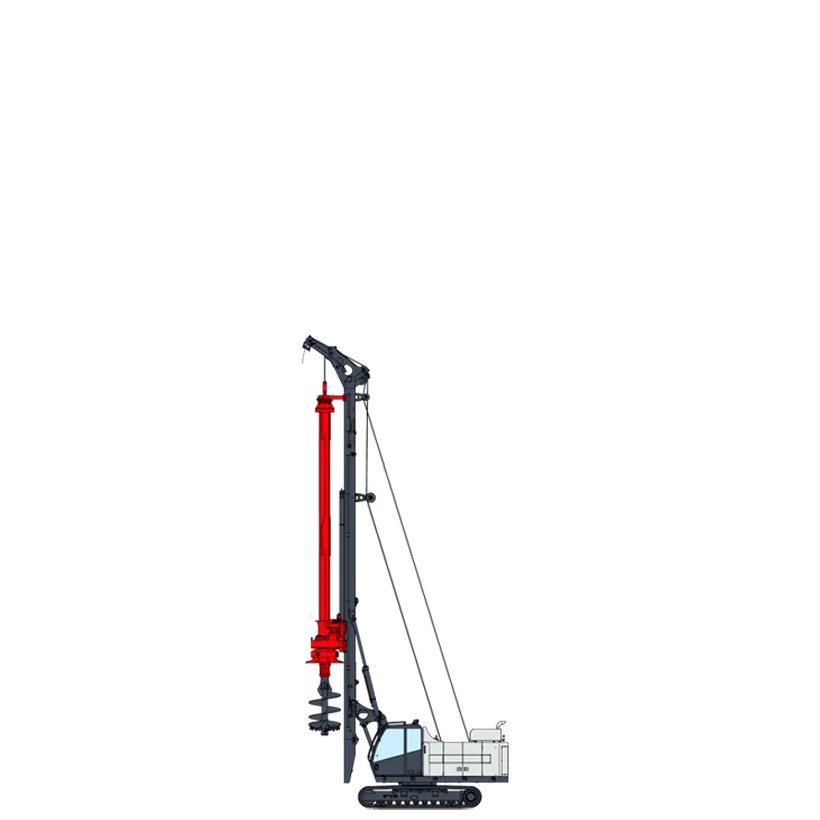

The CH 300 can be configured for uncased bored piles as well as cased piles, with a maximum drilling depth of 48.5 meters. It can also be easily converted to perform CFA drilling, handling augers up to 800 mm in diameter and a maximum depth of 19 meters.

One of the key advantages of the CH 300 is its innovative HPE (High Power Efficiency) system, which optimizes pump power usage to reduce fuel consumption while maintaining peak performance.

Want to learn more about Comacchio pile drilling rigs? Contact us!

Caractéristiques techniques
  1. Puissance moteur : 142 kW
  2. Traction : 148 kN (CPD)
  3. Weight : 29 400 kg
  4. Couple nominal : 132 kNm
  5. Diamètre de forage : 800 mm (CFA)
