HCR L100 Drill Rig
HCR L100 Drill Rig
HCR L100 Drill Rig

HCR L100 Drill Rig

Tous les produits

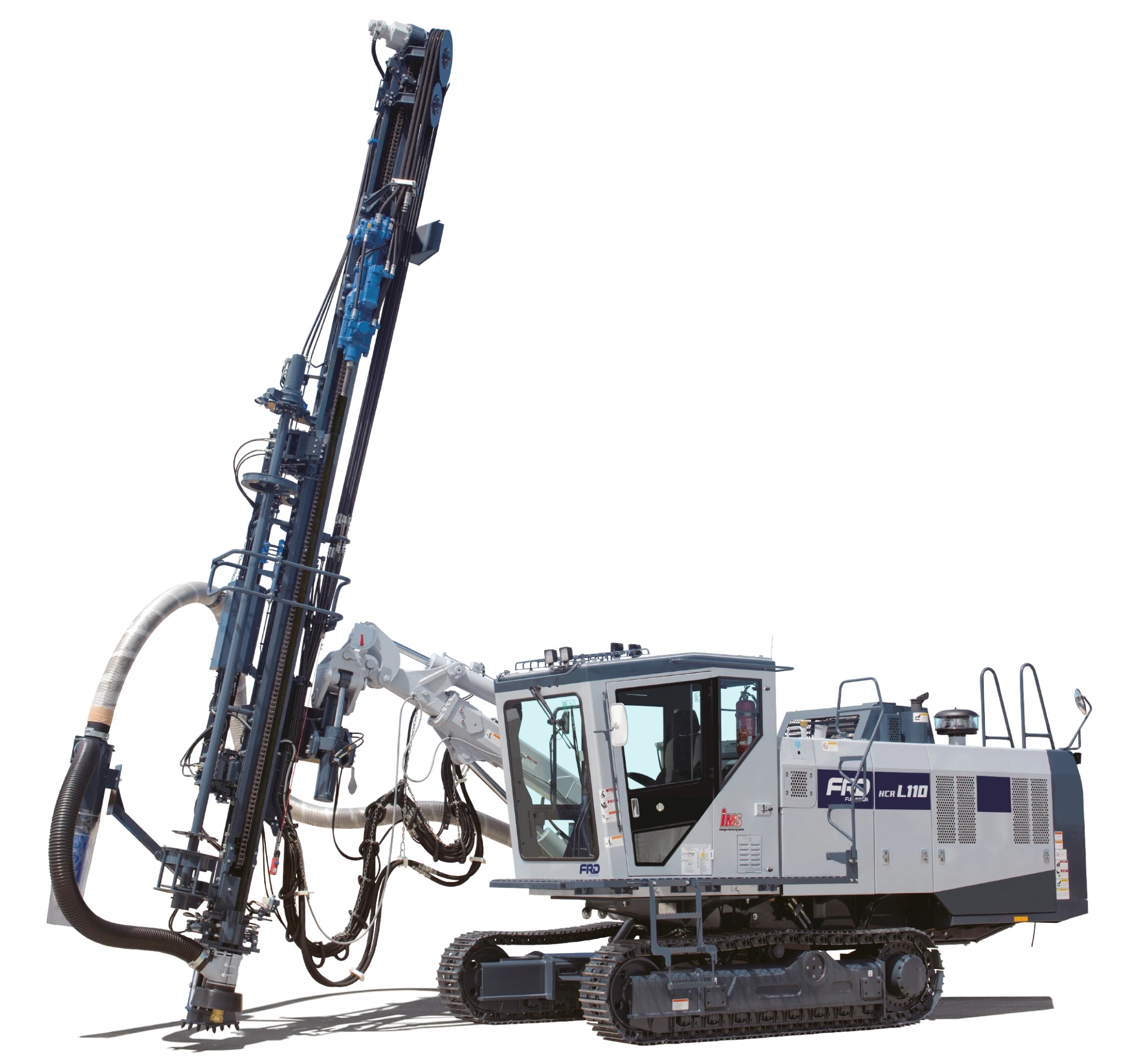

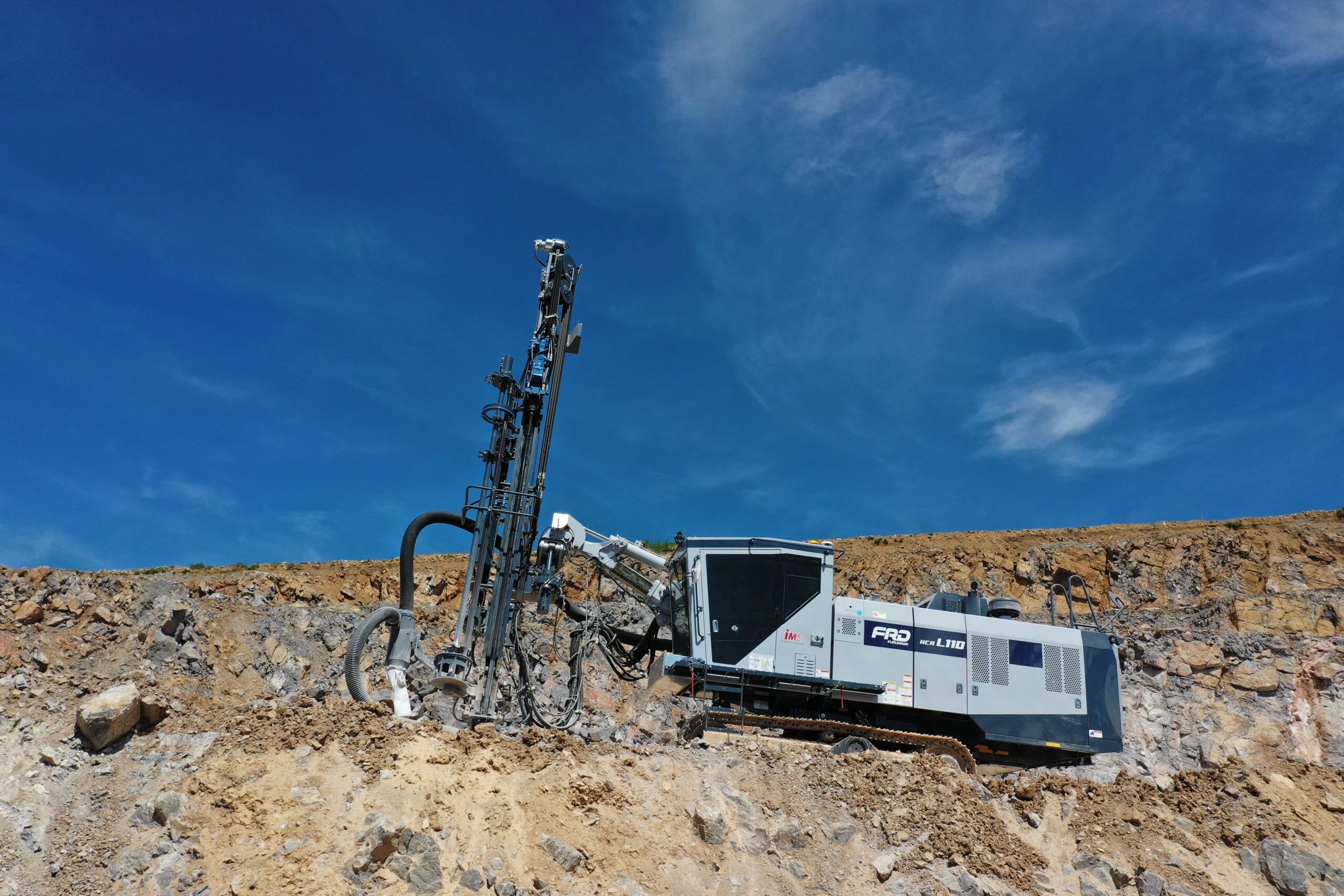

The Furukawa HCR L110-E3 hydraulic crawler drill is designed for more powerful and speedy drilling. It excels with its HD836 drifter, which features a highly-efficient percussion system and a dual damper system, allowing for faster and straighter drilling. Hole diameters can range from 102 mm to 152 mm. Powered by a Caterpillar C9.3B engine compliant with Tier 3 / Stage IIIA standards , it delivers 280 kW at 2,200 min-1. The HCR L110-E3 boasts a wide-covering extension boom , an advanced rotary rod changer , a heavy-duty undercarriage , and a safety ROPS/FOPS cabin.

Caractéristiques techniques
  1. Puissance moteur : 280 kW / 2 200 min-1
  2. Weight : 19 210 kg
  3. Impact Power : 36 kW
  4. Compressor Free Air Delivery : 13,5 m³/min
  5. Dust Collector Suction Capacity : 40 m³/min
  6. Hammer Type : HD836
Retrouvez toutes vos pièces et outils de forage sur maforeuse.com

Demandez un devis personnalisé dès maintenant !
