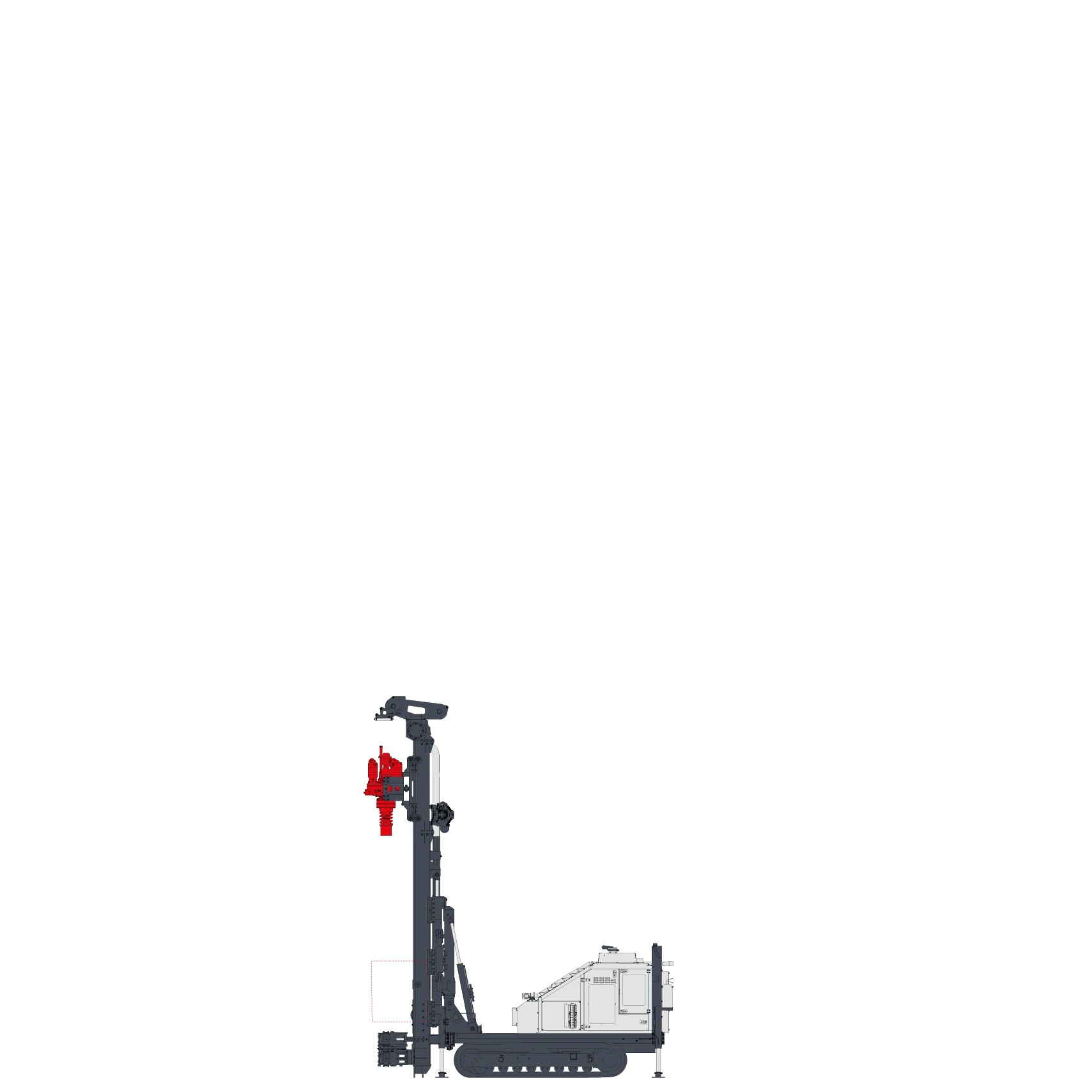

MC10 Comacchio: powerful and reliable vertical drill rig

MC 10 Drill rig

Tous les produits

The MC10 is specifically designed for vertical drilling applications, delivering exceptional power and performance.

Equipped with a 115 kW engine, the MC10 offers a stroke range of 2,100 to 3,500 mm, a push/pull capacity of 8,000 daN, and an impressive torque range of 1,000 to 3,100 daNm.

With clamp diameters from 45 to 365 mm and an approximate weight of 10,000 to 11,000 kg, this rig combines power, versatility, and reliability, making it ideal for demanding drilling jobs.

Want more information about the MC10? Contact us!

Caractéristiques techniques
  1. Puissance moteur : 115 kW
  2. Feed stroke : 2 100 - 3 500 mm
  3. Poussée : 8 000 daN
  4. Traction : 8 000 daN
  5. Torque : 1 000 - 3 100 daNm
  6. Clamp range : 45 - 365 mm
  7. Weight : 10 000 - 11 000 kg
  8. Speed min. / max. : 40 - 290 rpm
Retrouvez toutes vos pièces et outils de forage sur maforeuse.com

Produits complémentaires

Demandez un devis personnalisé dès maintenant !
